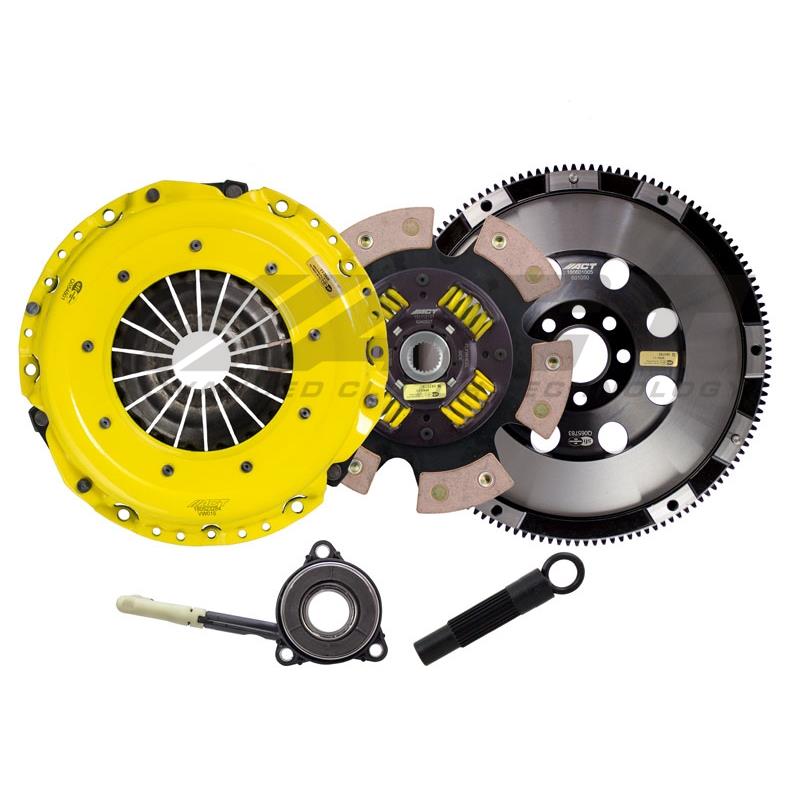

ACT Heavy Duty Race Sprung Clutch 6 Pad & Flywheel Kit 2015-2017 Volkswagen Golf R & Golf GTi

Retail Price: $1,692.00 Our Price: $1,320
Vendor: ACT SKU: VW9-HDG6

Description

VW9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel:Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle;

Life:Moderate friction life, extended by ACT's exclusive diaphragm design;

Quality:Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use:Recommended for high horsepower street or race use;

ACT Difference:100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications
Warranty 12 Months
Product Weight (lbs.) 31.8
Disc Type Sprung Race Disc
Pressure Plate Type Heavy Duty
Input Shaft Diameter (Inches) 15/16
Torque Capacity Over OE 102%
Torque Capacity (ft/lbs.) 640
Disc Diameter (Inches) 9.4
Disc Diameter (mm) 240
Spline Count 23
Disc Material Ceramic
Pad Quantity 6
ItemCodeDesc HD/Race Sprung 6 Pad
Alignment Tool Included AT126
Release Bearing Included RB011
