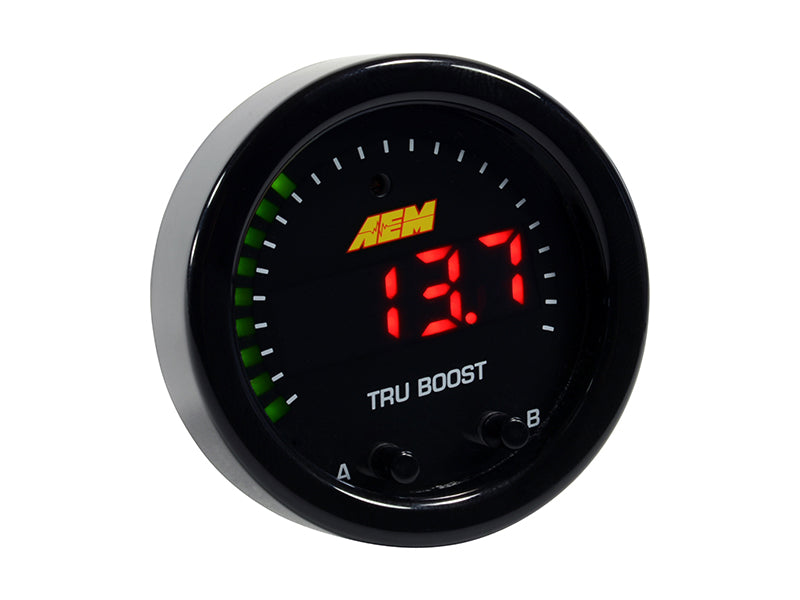

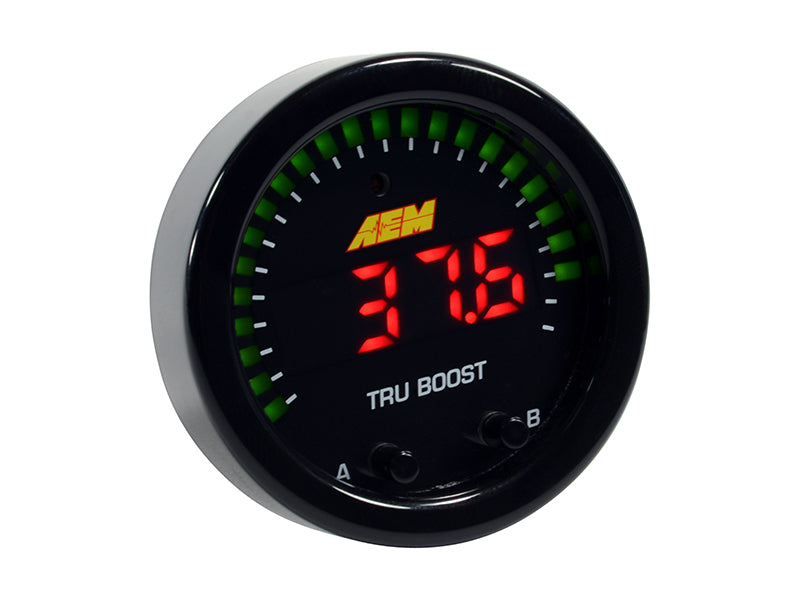

AEM Tru-BoostX Controller Gauge w/ Boost Control Solenoid 80PSIg Internal MAP Sensor

The beloved Tru-Boost Gauge from AEM has been put to pasture and is replaced with the new X-Series Tru-BoostX Boost Controller Gauge. The Tru-BoostX Boost Controller Gauge delivers all of the features you loved about the original, and now includes integration with AEMnet for data logging and a big, fat internal MAP sensor that can handle boost pressures up to 80 PSI of boost.

The Tru-BoostX Boost Controller gauge delivers digital accuracy but with the simplicity of a manual boost controller. All programming is done using the faceplate buttons and no laptop is required. AEM’s specially designed Boost Control Solenoid and all necessary hardware is included.

Features:

• A boost display gauge and boost controller in one!
• Easy to program—no laptop required

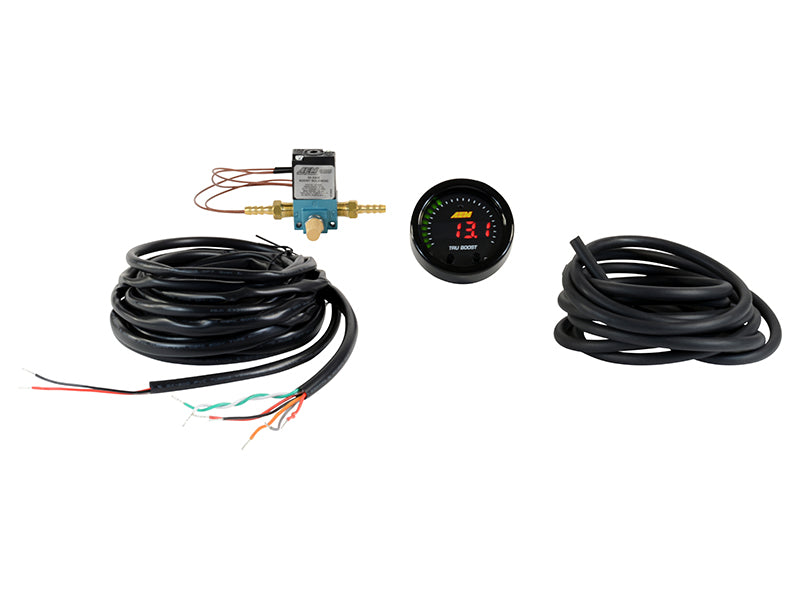

• Boost control solenoid and all necessary hardware included
• On-board 80PSIg MAP sensor—no upgrade kit needed for high boost vehicles
• Two boost level settings and scramble boost setting
• Wastegate open pressure setting for controlling boost spikes and faster spool
• Display boost levels in PSI, BAR or kPa
• Overboost protection and programmable alarms, ground output for an optional LED warning light
• Peak boost level recall
• X-Series design for the best visibility (87-percent larger center LED and 33-percent larger face design)
• X-Series dimensions make it easier to install (0.825-inch overall depth, 0.20-inch cup depth)
• AEMnet CAN-bus enabled for data logging (13 channels of data over the 2-wire connection)
• Standard 52mm (2-1/16-inch) cup
• 24 programmable green outer LEDs
• Auto-dimming sensor for ideal brightness day or night
• Positive locking connectors
• Optional silver bezel with white faceplate accessory kit (30-0352-ACC)
