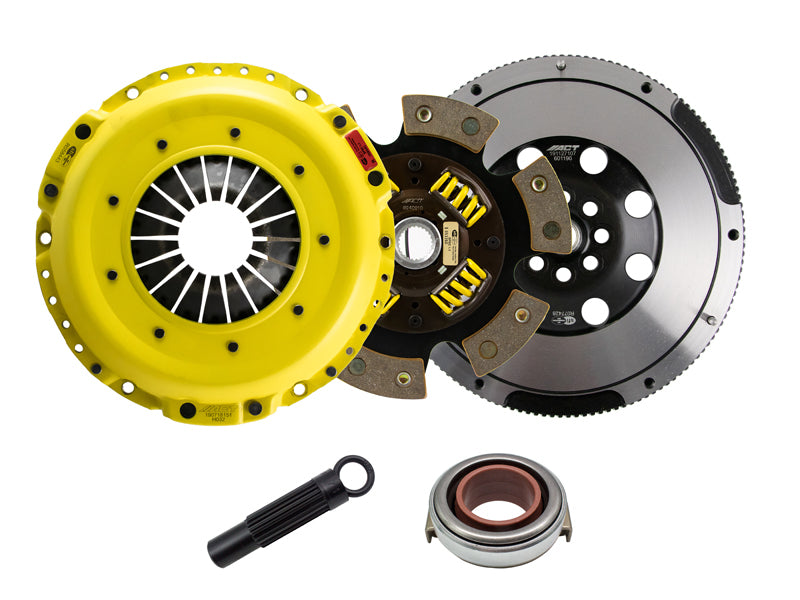

ACT Clutch Kit Heavy Duty pressure plate/Race Sprung 6 Pad 2017-2022 Honda Civic Si / 2017+ Civic EX/EX-L/Touring / 2023+ Acura Integra

Retail Price: $1,433.00 Our Price: $1,118
Vendor: ACT SKU: HC10-HDG6


HC10-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Life Moderate friction life, extended by ACT's exclusive diaphragm design
Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use Recommended for high horsepower street or race use
ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability


Item Description HD/Race Sprung 6 Pad
Product Weight (lbs.) 33.7
Torque Capacity (ft/lbs.) 464
Torque Capacity Over OE 109%
Disc Material Ceramic
Clutch Disc Diameter (Inches) 9.4
Clutch Disc Diameter (Millimeters) 240
Input Shaft Diameter (inches) 1.0325
Input Spline Quantity 24
Pressure Plate Type Heavy Duty
Flywheel Type Streetlite
