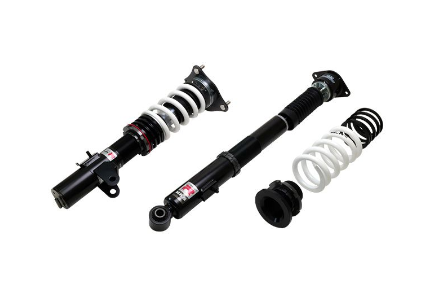

HKS Hipermax S 2012-2025 Honda Civic Type R (FK8) Full Canceller kit F-Pillow

HKS Hipermax S 2012-2025 Honda Civic Type R (FK8) Full Canceller kit F-Pillow

SKU:80300-AH013CP

Regular price $3,015.00 USD
Regular price $3,350.00 USD Sale price $3,015.00 USD
Sale Sold out
Shipping calculated at checkout.

HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension.

Single Tube
30 levels Adjustable Damping
Shock-body Length Adjustable (Rear)
Front Pillow Upper Mount
Preload Valve System
Special Oil
PNE Coating
Spec. Change Available
Overhaul Available
3-year Warranty

We have developed a kit for FL5 that combines the popular HIPERMAX S series with a front pillow upper. It allows for camber adjustment. By increasing the tire size and camber angle, you can prevent understeer and enjoy a powerful exterior.

New technologies such as Dual PVS, Wide Range Needle, and Advanced Bump Rubber provide the best driving performance ever.

 Combined with the direct handling provided by the pillow upper mount, please enjoy the high- dimensional ride quality that HKS has pursued and it is not only fun and comfortable. We pursue driving performance that lives up to the name TYPE-R, which is flexible yet runs well.

Spring Rate

[N/mm(kgf/mm)]

F= 98 (10)

R= 78 (8)

Spring Length (mm)

F= 150 (Straight)

R= 170 (Straight)

Height at Factory (mm)

(Upper - Lower)

F= -23 (-21to -43)

R= -22 (3 to -41)

Upper Mount

F= Camber Adjustment Pillow

R= Rubber

Spring Rate Change at Factory

[N/mm(kgf/mm)]

F= Not available

R= Plus or minus 10 (1)
