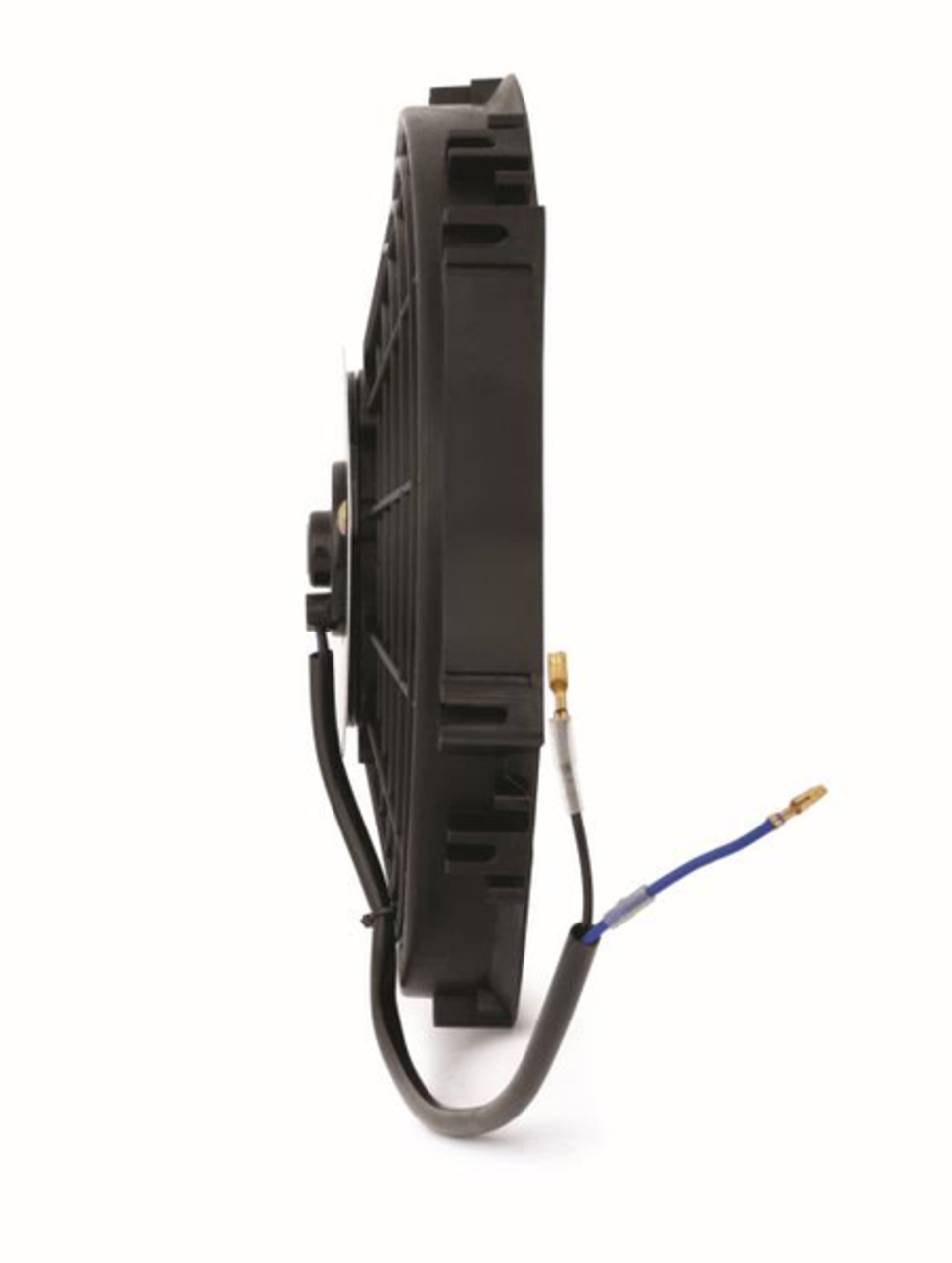

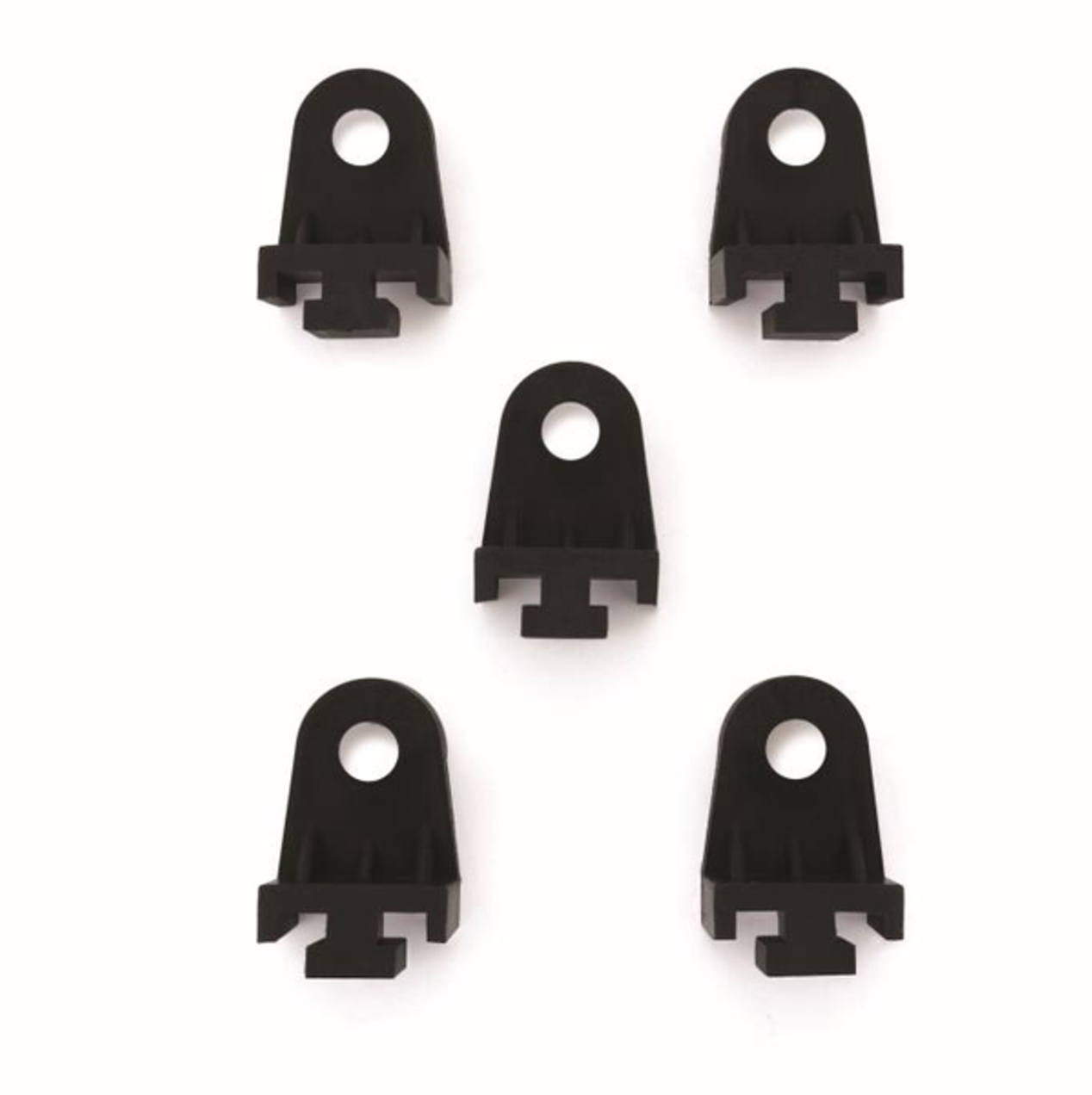

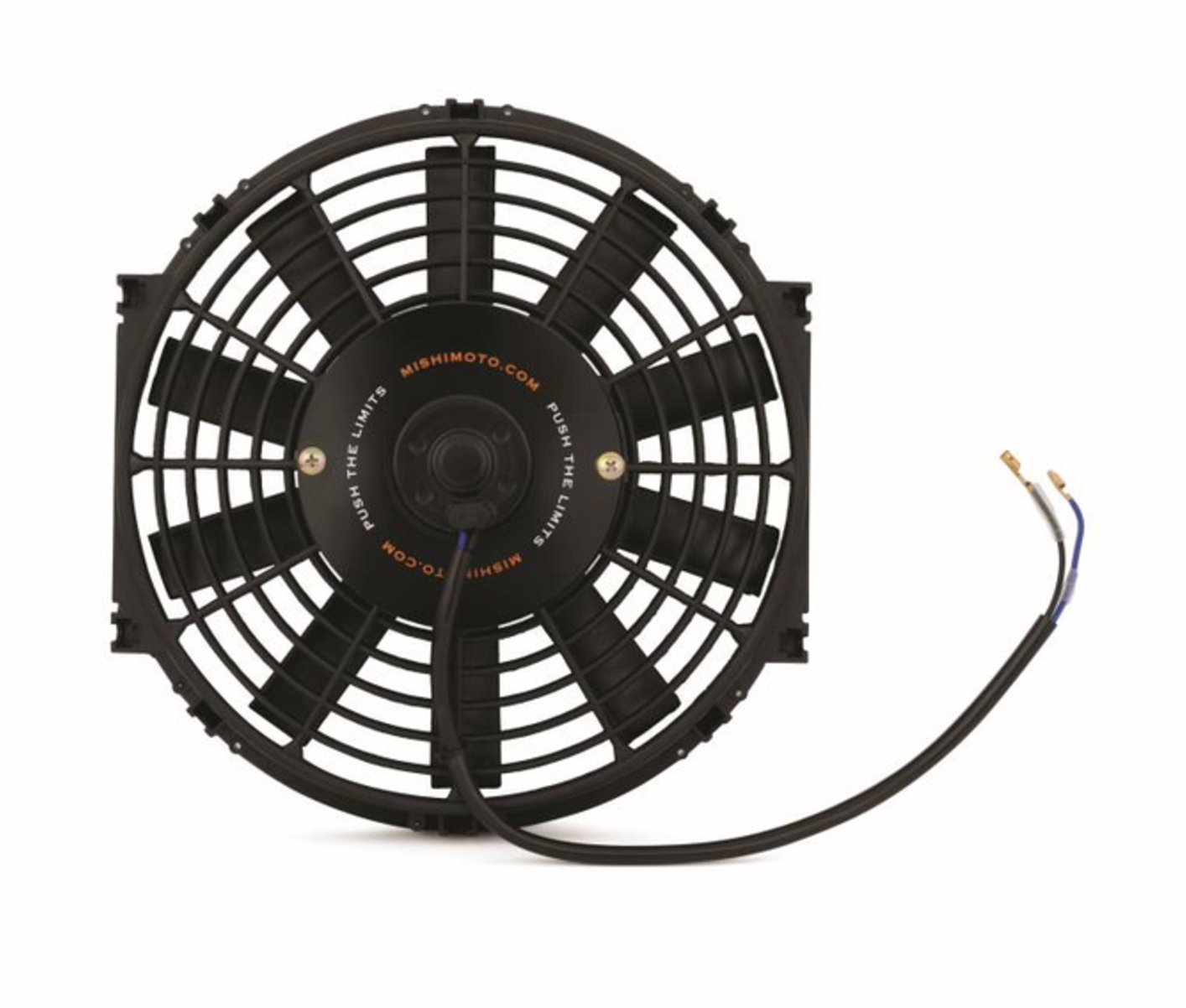

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products.With its slim design, the fan can easily be installed flush against a radiator.For universal installation, use Mishimoto universal fan mount kit.(P/N: MMFAN-MOUNT)
Key Features
High-flow fan provides 950 cfm of airflow
Universal fitment
Compact design with a diameter of 10-in and an overall thickness of only 2.36-in provides increased engine bay space
CFM
950
Depth (in)
2.36
Diameter (in)
10
rpm
2300
Amp Draw (Start)
13.08
Amp Draw (Running)
6.8
Blade Style
Straight
Airflow Direction
Pull
Note
To optimize airflow as a pusher, reverse polarity and physically flip the fan blades. While reversing polarity alone can provide some push, flipping the blades maximizes performance.
