ACT Triple Disc HD/SI Race Clutch Kit
ACT Triple Disc HD/SI Race Clutch Kit
SKU:T1R3-T01
Regular price
$2,484.00 USD
Regular price
$3,067.00 USD
Sale price
$2,484.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

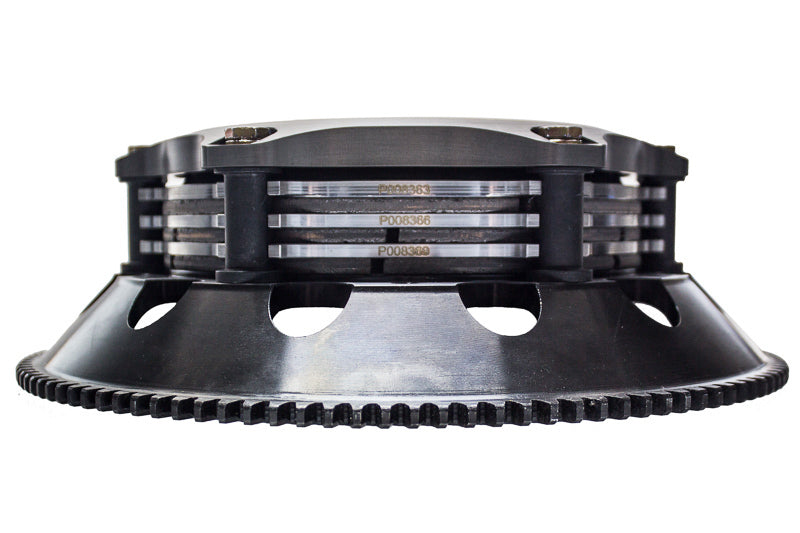

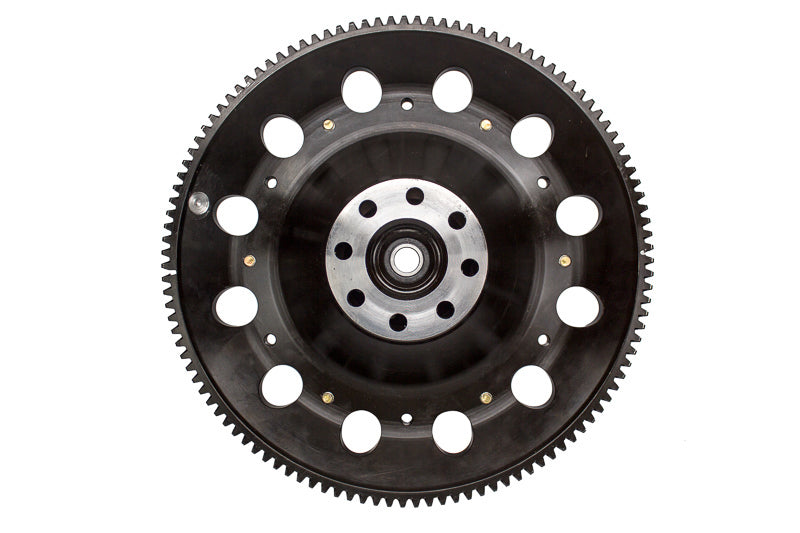

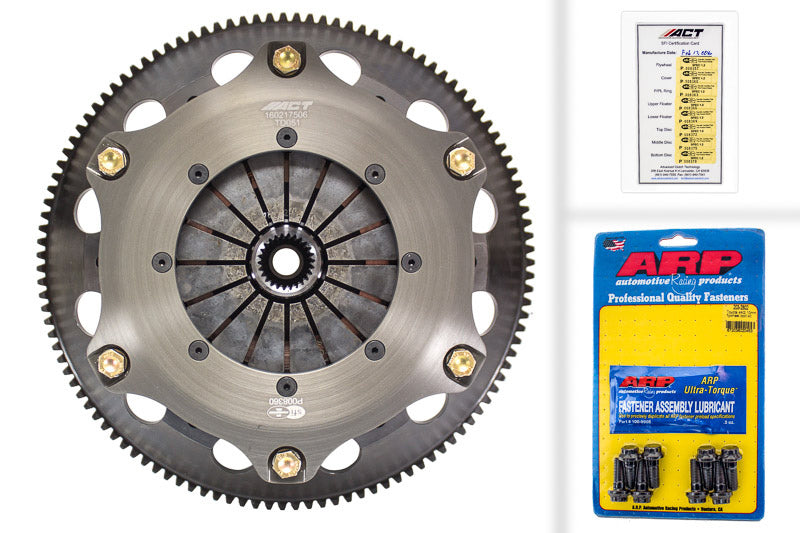

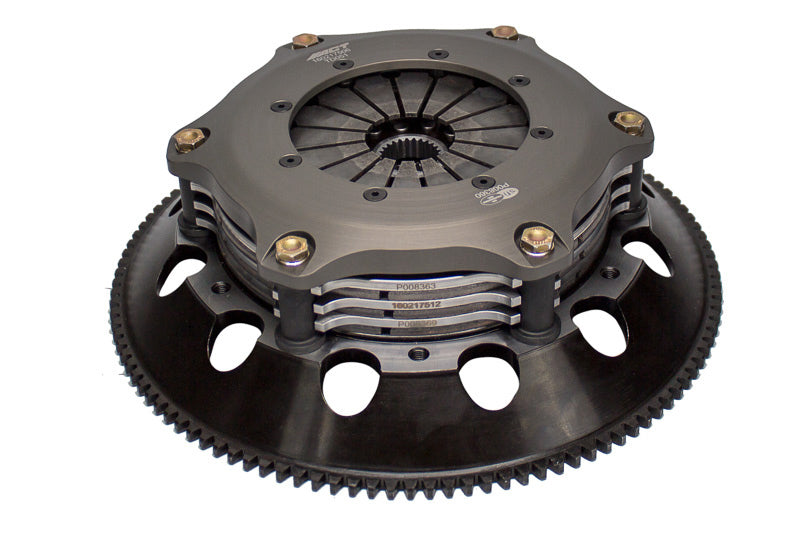

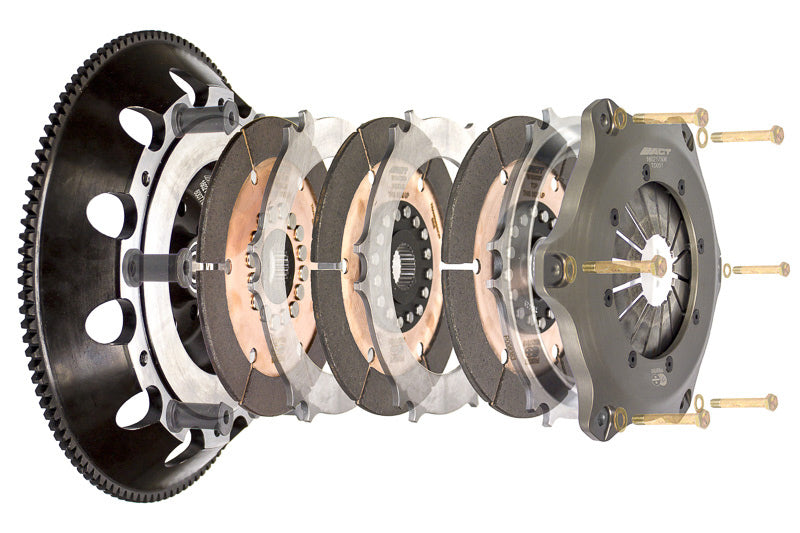

T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
| Feel | Light to moderate pedal effort, predictable, quick engagement, quick throttle response, increased gear rattle |
|---|---|
| Life | ACT's exclusive diaphragm, hardened posts and high heat capacity for long life under severe abuse, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability |
| Recommended Use | Recommended for high horsepower race use only, not intended for street |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Specifications
Note: Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing # 60-4420. Flywheel bolts included (M10-1.25 X 25mm).
