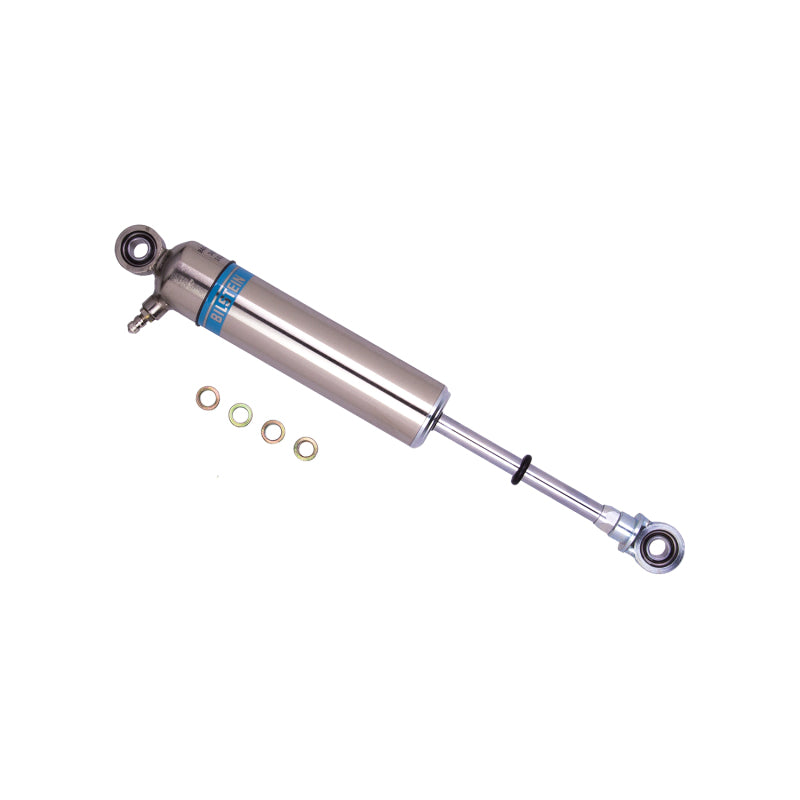

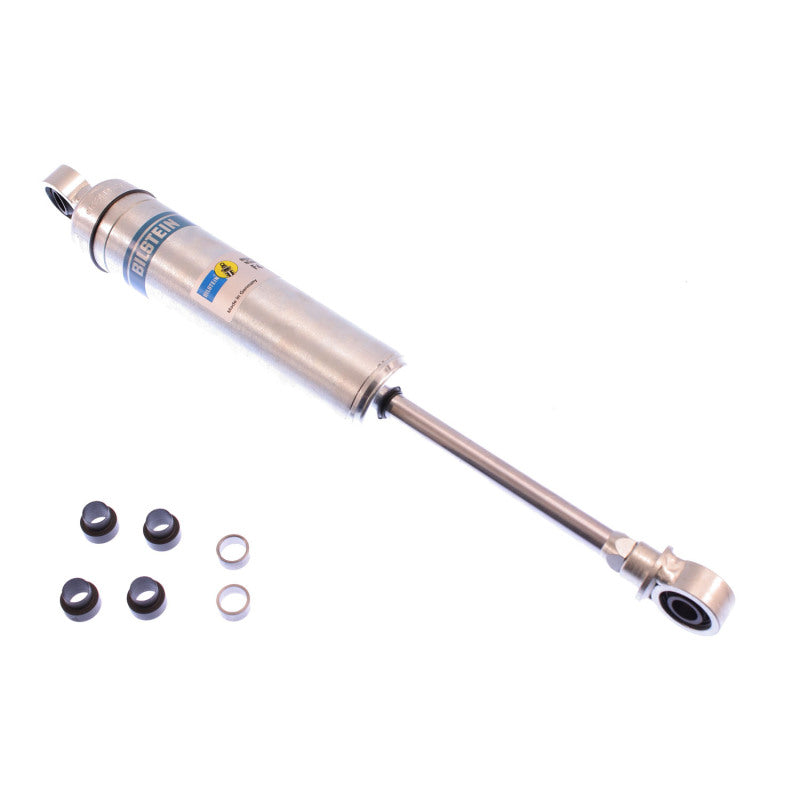

Bilstein 7100 Classic Series 46mm 16.24" Length Monotube Shock Absorber

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Collapsed Length (in): 11.24

Extended Length (in): 16.24

Collapsed Length (mm): 285.5

Extended Length (mm): 412.5

Stroke/travel Length (in): 5.00

Compression @0.52m/s: 1600

Rebound @0.52m/s: 3500

Lower Mount Type: 1/2in Heim

Upper Mount Type: 1/2in Heim

Mount Type: Eye-to-Eye

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Coilover)

Piston Diameter: 46mm

Spring Seat Included: No

Optional Reservoir Clamp: N/A

Shaft Diameter (mm): 14.0

Valving Type: Firm
