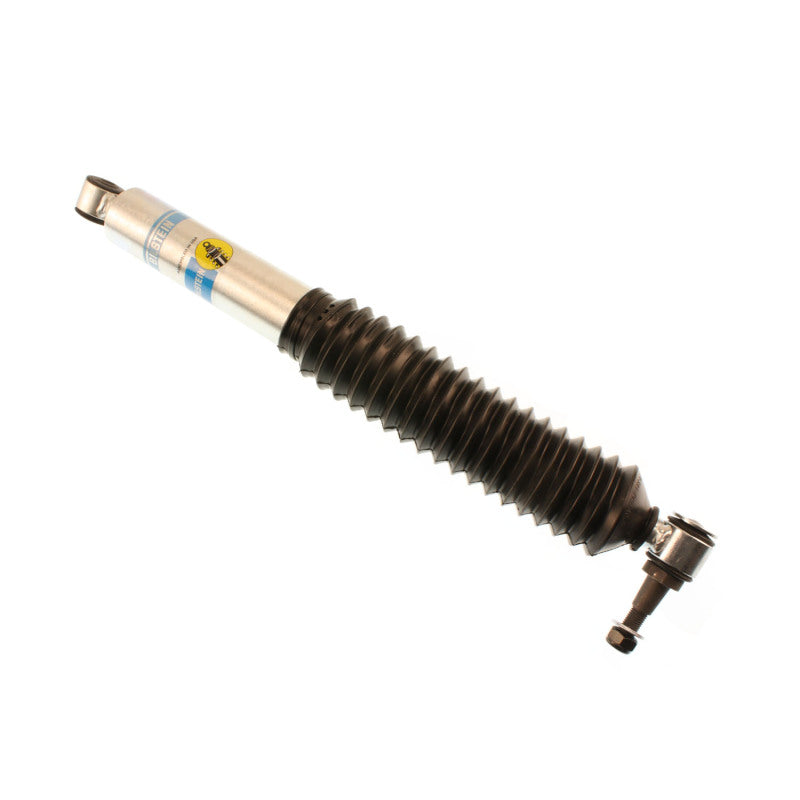

Bilstein B8 5100 Steering Damper 2002-2006 Chevy Avalanche 2500 / 2001-2003 & 2005-2006 Silverado 1500HD / 1999-2004 Silverado 2500 / 2001-2010 Silverado 2500

Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.

Collapsed Length (in): 12.83

Extended Length (in): 20.08

Collapsed Length (mm): 326.0

Extended Length (mm): 510.0

Stroke/travel Length (in): 7.25

Lower Mount Type: Cantilever

Upper Mount Type: Eye 12.7mm

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

Shaft Diameter: 11mm
