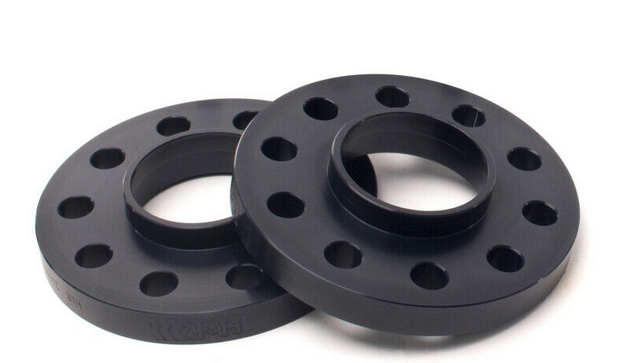

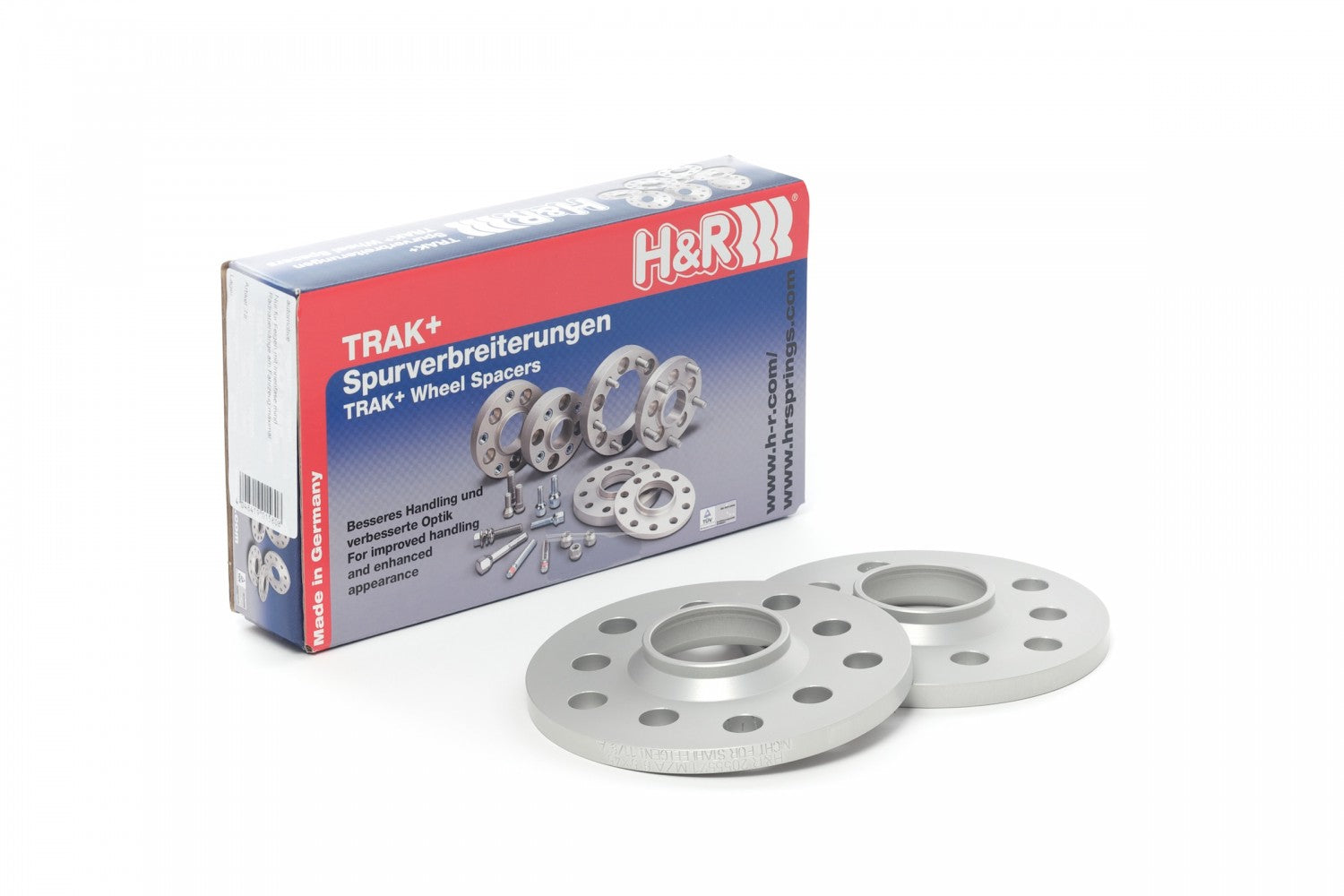

DR Series spacers fit between the wheel and hub, and require longer wheel bolts (ordered separately). Please verify bolt specifics before ordering (taper or round bolt head and shaft length).
Bolt Pattern: 5x112
Center Bore: 66.5mm
Thread: 14x1.5 Bolt
Spacer width: 3mm
Sold as one pair (2pcs)
Applications- 2020-up Toyota Supra
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here.When ordering wheel bolts, please follow these guidelines:
a)If possible, name the brand of wheel.
b)New bolts must be longer than the original bolts by the width of the wheel spacer used.
c)The bolt head must be identical to the existing bolt:
Taper 60° End digit 01
Round head for M12/d24 mm, for M14/d28 mm End digit 02
Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03
Flat head for Porsche original wheels M14 x 1.5 End digit 06
(Minimum number of turns for wheel bolts / nuts):
M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length
e)Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).
These are hub-centric flat disc type spacers which require the factory hub to center the wheels. Please measure the vehicle hub to verify sufficient height will remain to center the wheel after spacer installation.
Careful attention must be paid to the vehicle hub height and inner wheel bevel measurements. Failure to follow the measurement guidelines below can result in serious damage to wheel spacers, wheels, and mounting hardware.
