Mishimoto Race Line High-Flow Fan 10"
Mishimoto Race Line High-Flow Fan 10"
SKU:MMFAN-10HD
Regular price
$157.95 USD
Regular price
$174.00 USD
Sale price
$157.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

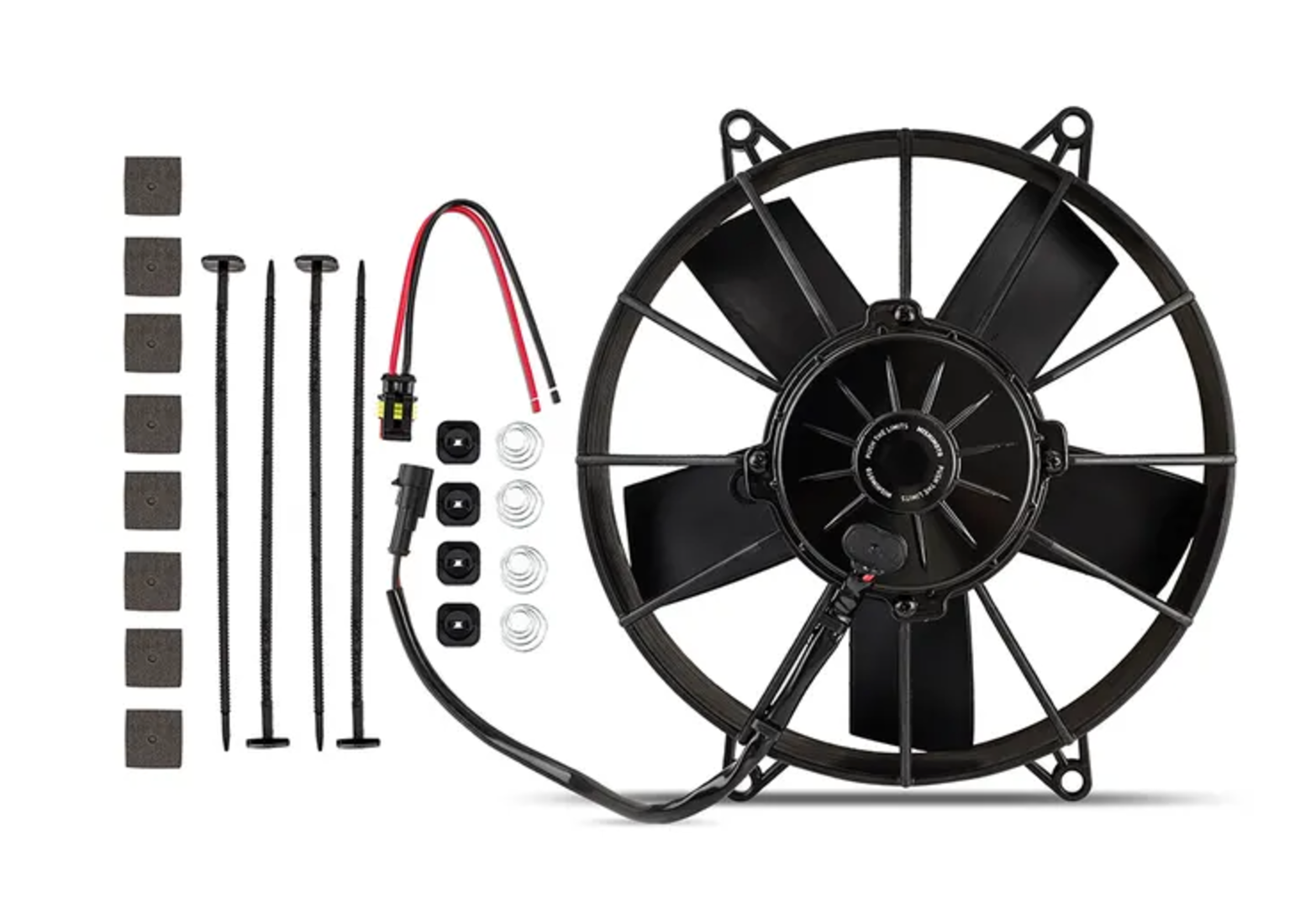

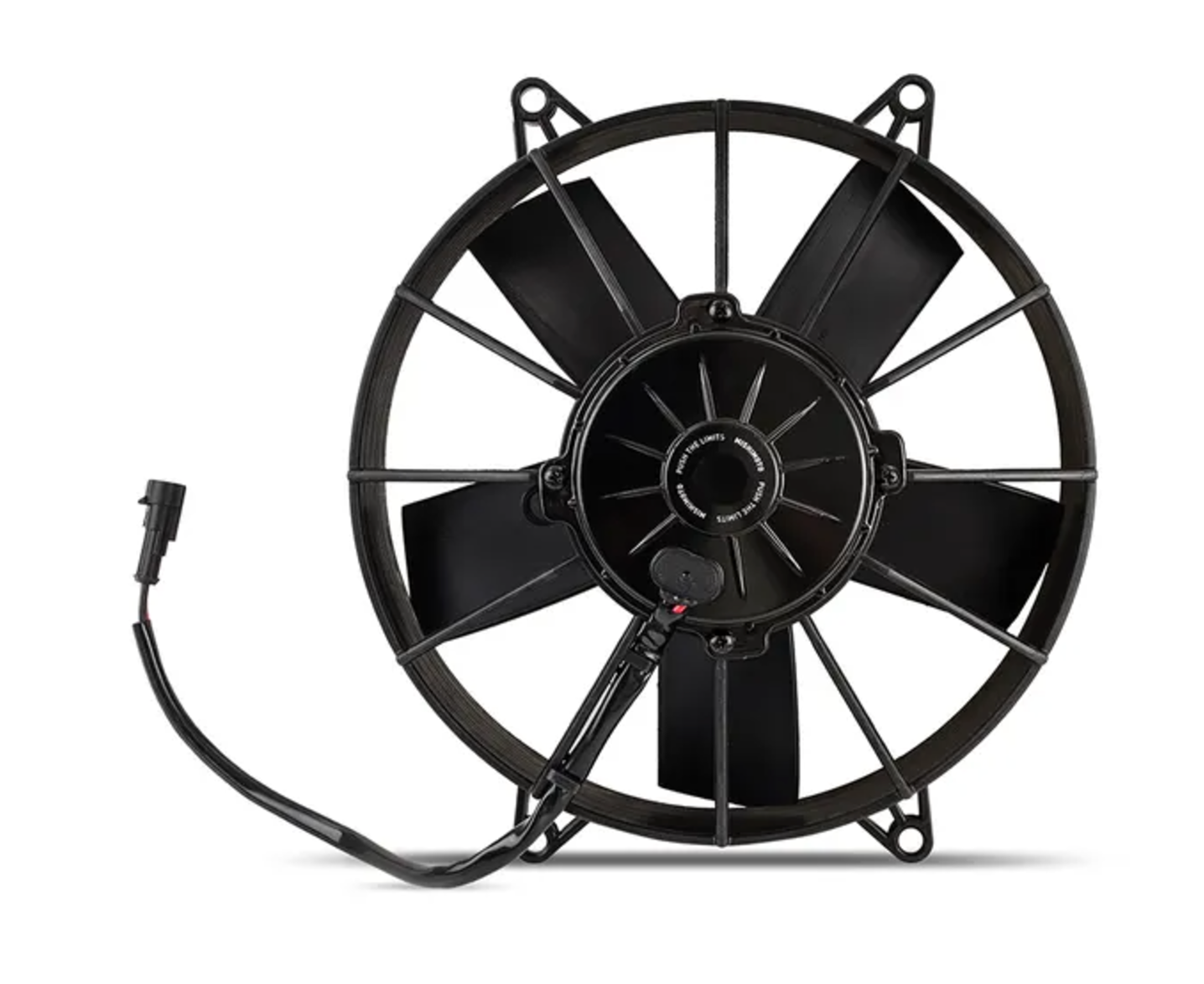

Provide your radiator with the maximum amount of airflow with our new 10in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1600 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
Key Features
- High-flow fan provides increased airflow

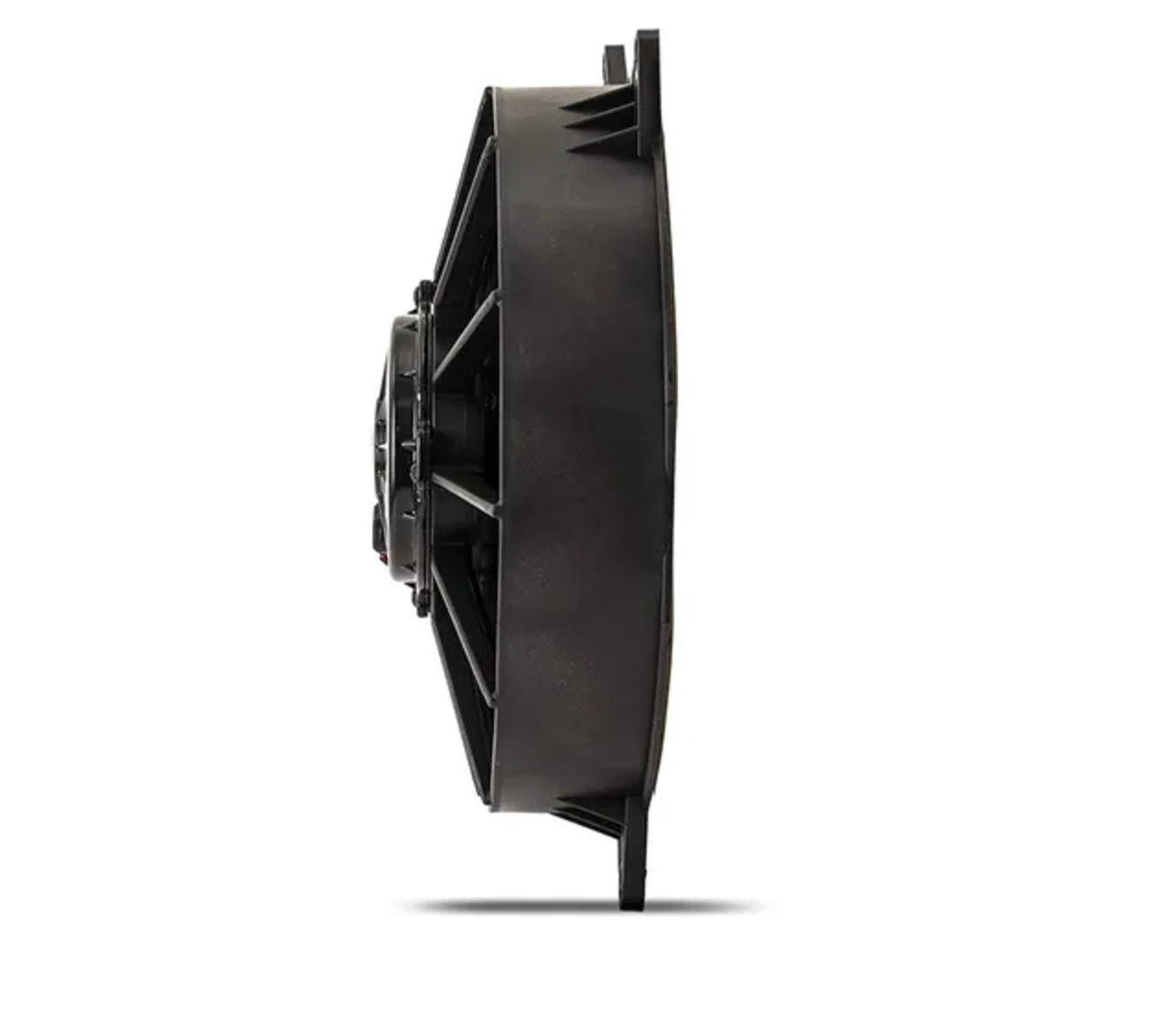

- Compact design with a housing diameter of 11-in and an overall thickness of 3.85-in provides sufficient clearance in the engine bay
- Universal fitment
| CFM | 1600 |
|---|---|
| Depth (in) | 3.85 |
| Diameter (in) | 10 |
| rpm | 3000 |
| Amp Draw (Running) | 10 |
| Blade Style | Straight |
| Airflow Direction | Pull |
| Installation Notes | Mishimoto recommends the use of a fan shroud for optimal operation. |
| Note |
Reversing polarity can enable pusher functionality, but the original design optimization for puller configuration may limit performance. Long-term effects of this configuration are uncertain. |
| Wiring Connection | Female Snap-Plug Terminal |
