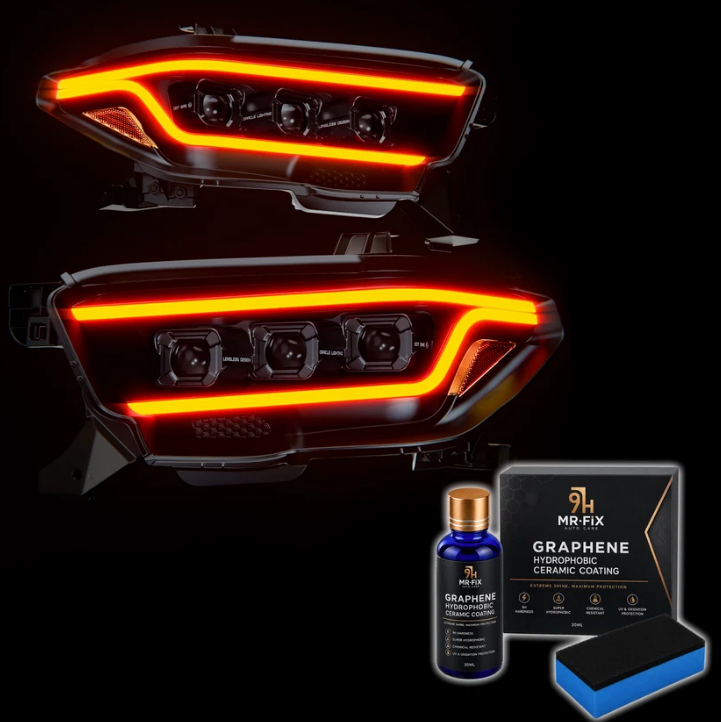

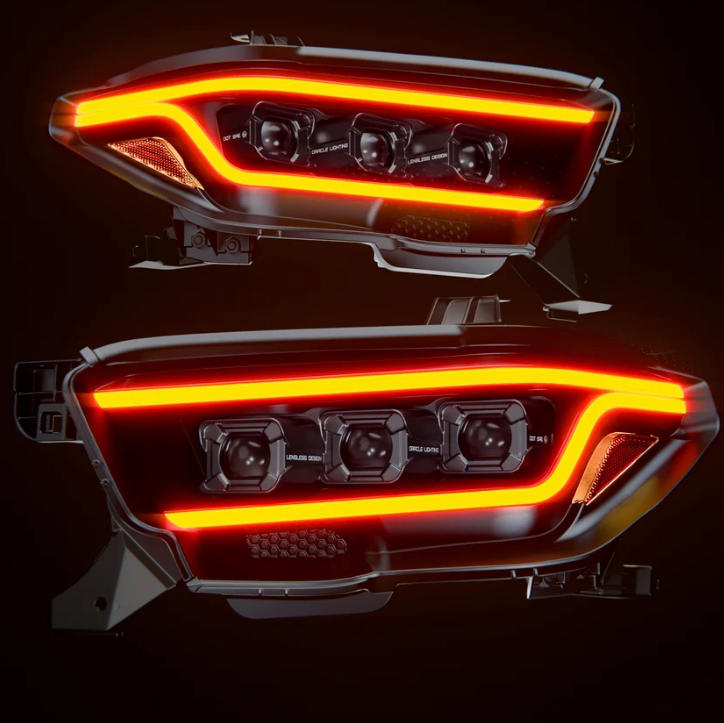

Oracle Lensless LED Headlights For 2016-2023 GEN 3 Toyota Tacoma

Traditional headlights still rely on a design concept that dates back more than 100 years: protecting the light source behind a large outer lens. While lighting technology evolved, the lens remained the weakest and most failure-prone component - fogging, yellowing, cracking, oxidizing, and trapping condensation over time.

ORACLE's Lensless Architecture changes that completely. By eliminating the outer lens and replacing it with sealed modular LED emitter pods, the system removes every common lens failure point while introducing a new level of durability, serviceability, and customization that conventional headlights simply cannot match.

Built around innovative sealed LED emitter pods, advanced thermal management, and ruggedized die-cast aluminum construction, the Lensless platform delivers a distinctive appearance with practical advantages purpose-built for real-world driving and off-road environments. Individual low beam, high beam, and DRL modules are fully replaceable - often without removing the headlight from the vehicle - dramatically reducing long-term maintenance costs.

This is not just a new headlight. It is a completely new lighting platform.

Headlight Assembly

• Low Beam Power: 80W Total (4x 20W LED Emitters)
• Low Beam Output: 9,600 Lumens
• High Beam Power: 40W Total (2x 20W LED Emitters)
• High Beam Output: 16,400 Lumens
• Optic Material: 1" Ballistics-Grade PMMA (UV Stable)
• Housing Material: High-Strength Die-Cast Aluminum Alloy
• Surface Finish: Automotive-Grade Thermoset Powder Coat
• Thermal Management: Active & Passive (Aluminum Housing)
• Waterproof Rating: IP68 (Submersible)
• Warranty: 5-Year Replacement on All Components
• Install Time: ~30 Minutes
• Patent Status: Multiple Patents Pending

DRL / Turn Signal Modules

• Optic Construction: Premium Dow Chemical SILASTIC ET-7021 Optical Silicone
• Light Transmission: Optimum Transparency with Excellent Light Transmission
• UV Stability: Highly UV Stable with Wear Resistance
• Light Output: Uniform - No Visible Hotspots or Shadows
• Appearance: Blacked-Out Silicone Body
• Durability: Extreme Flexibility and Impact Resistance
• Ingress Protection: IP67 Rated
• Chemical Resistance: Resistant to Salt, UV, Acids & Harsh Chemicals
• Outdoor Rating: Designed for Long-Term Outdoor Durability
• LED Lifespan: 50,000+ Hours
• Warranty: 5-Year Warranty

Product Overview

• Multiple-patent-pending lensless architecture - eliminates the traditional outer polycarbonate lens entirely
• No lens failures - removes fogging, yellowing, oxidation, cracking, and condensation from the equation

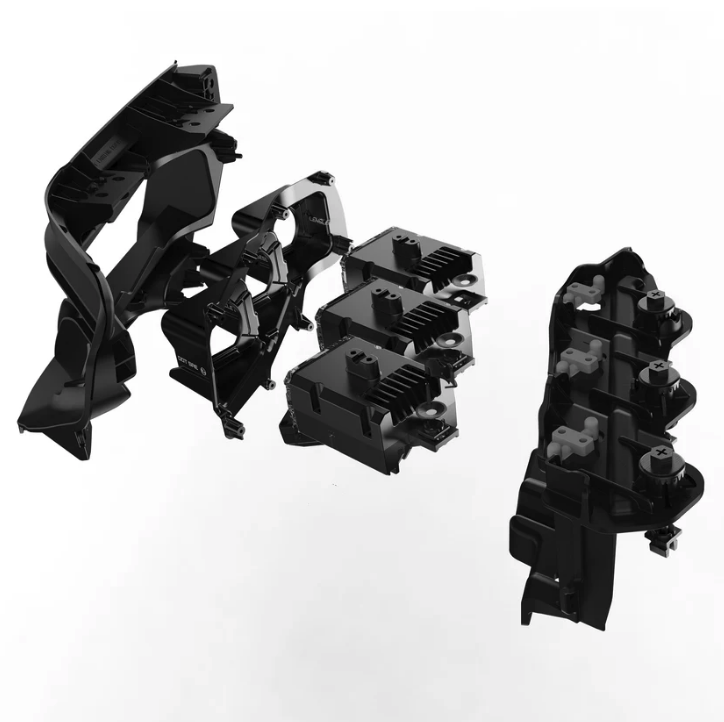

• Modular LED emitters - individually serviceable low beam, high beam, and DRL modules; replaceable without full headlight removal
• 1" thick ballistics-grade PMMA optics - extreme impact resistance, excellent optical clarity, UV stable
• Active & passive thermal management - aluminum housing maintains optimal LED operating temps; heated surfaces reduce snow/ice accumulation
• High-strength die-cast aluminum alloy housing - engineered for thermal efficiency, structural rigidity, and long-term corrosion resistance
• Automotive-grade thermoset powder-coat finish - superior UV resistance and environmental protection

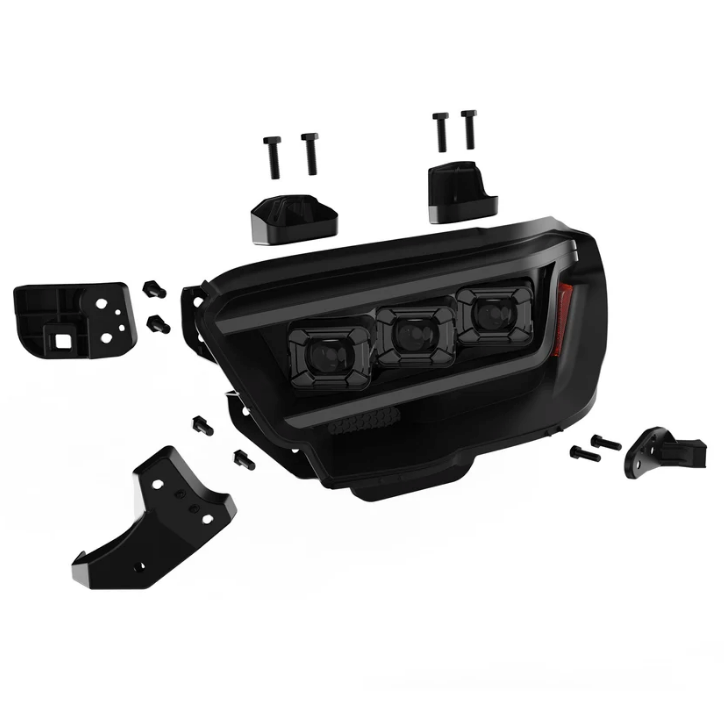

• Heavy-duty reinforced mounting brackets - modular replaceable bracket design for improved durability during shipping, install, and off-road use
• IP68 waterproof assembly - pressure washer, rain, and snow safe; engineered for vibration, dirt, debris, and harsh weather
• IP67 waterproof DRL - Resistant to Salt, UV, Acids & Harsh Chemicals
• 5-year replacement warranty on all components
• Paintable housing surfaces - OEM+ styling or complete custom color matching
