Radium Engineering Catch Can Kit, PVC 2017-2021 Honda Civic Type R (FK8) / 2023+ Honda Civic Type-R FL5

This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

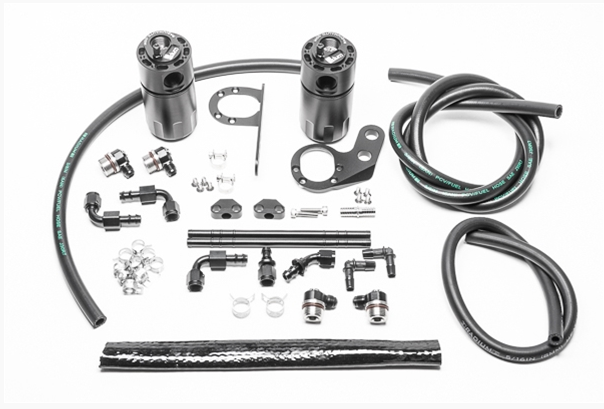

20-0424-FL Catch Can Kit, PCV, 2017+ Civic Type-R

COMPATIBILITY
17-21 Honda Civic Type-R FK8 (LHD Only)
2023+ Honda Civic Type-R FL5 (LHD Only)

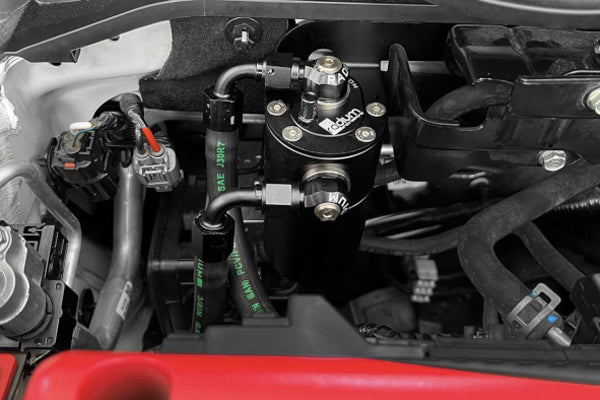

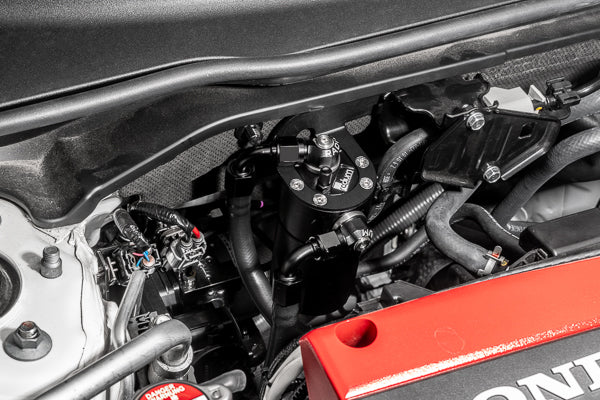

The catch can secures to the RH firewall with no modifications required (FK8 shown below).
