The all-new Radius Arms are designed to correct the suspension geometry on lifted models. These new radius arms are heavy duty and are built to handle the use and abuse demanded out of Super Duty trucks. The new radius arms hold up to the abuse and surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, and providing the ability to install oversized tires. The direct bolt-on design promotes quick and easy installation. This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving your ride are the new specially engineered coil springs teamed with Falcon shocks and track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.
The ReadyLIFT 4" Coil Spring lift kit system for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, our time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4” Coil Spring Suspension Kit System.
37x12.50 for no rub on a 9" wide wheel with 0 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

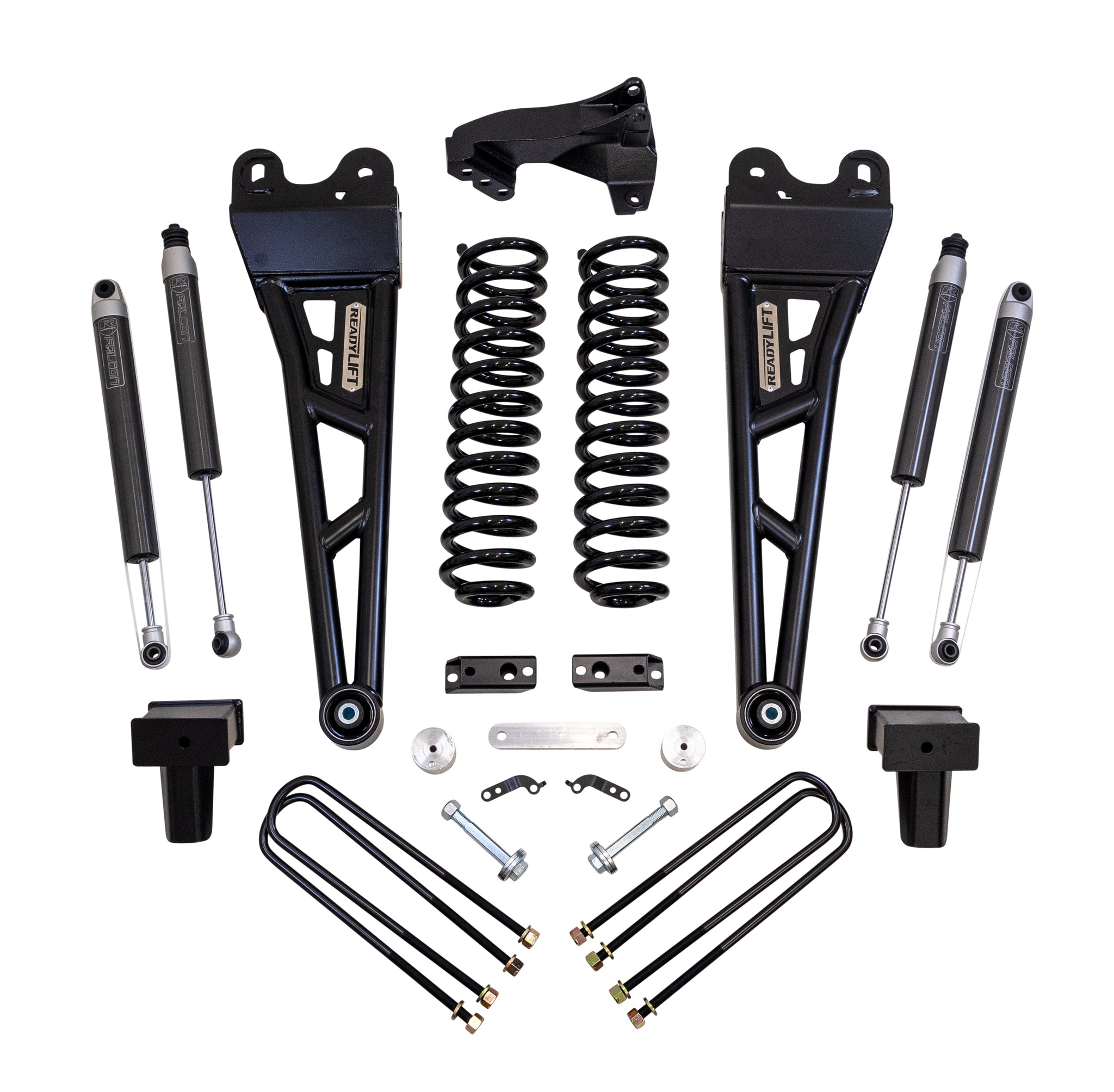

4" Lift Springs
Falcon 1.1 Monotube Front and Rear Shocks
Track Bar Relocation Bracket
Sway Bar Drops
Bump Stop Extensions
Carrier Bearing Drop
Front Brake Line Brackets
Fabricated Rear Lift Blocks
Fits 2017-2022 Ford Super Duty Power Stroke 4WD
NOTE: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. 2017-2019 ride height may be slightly lower. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
