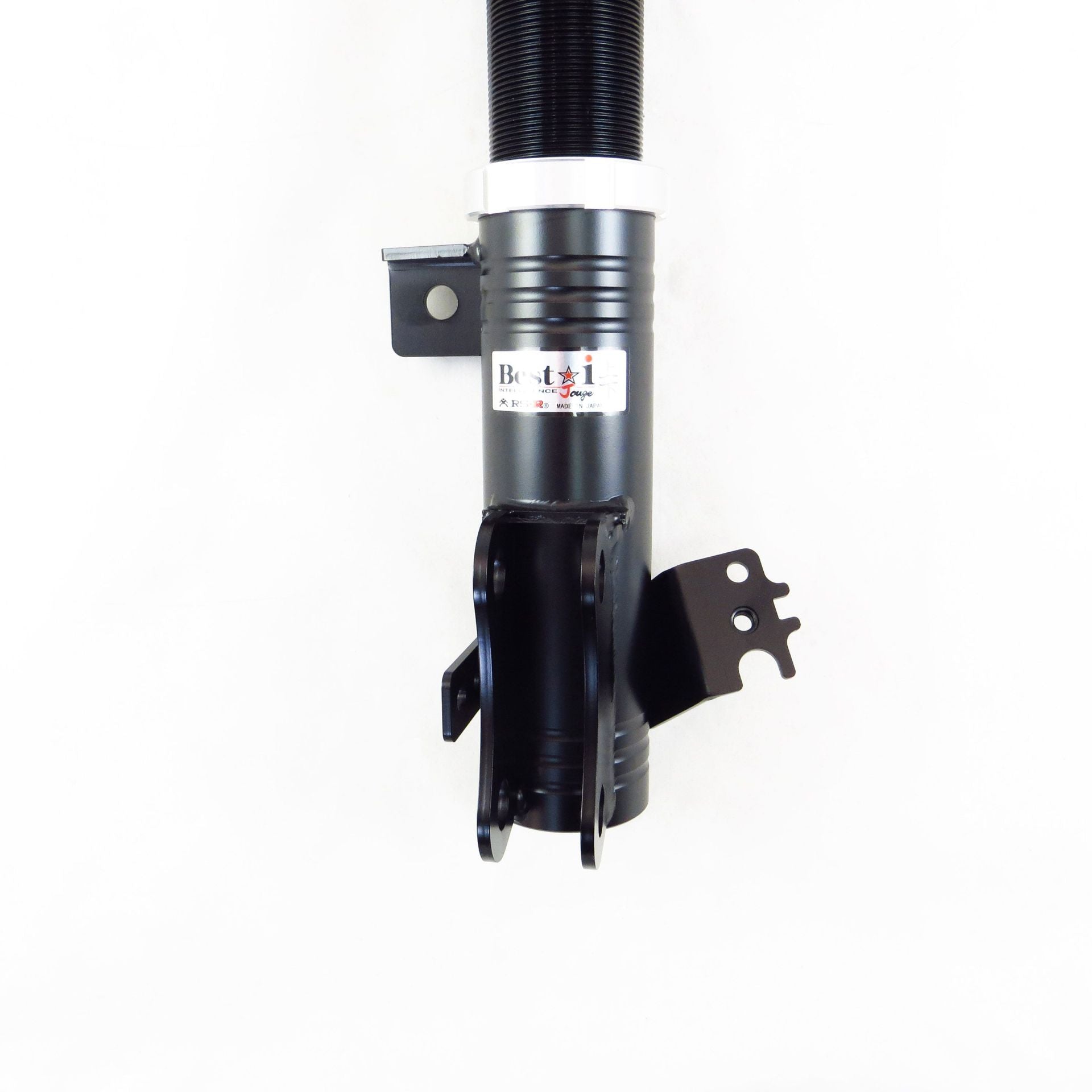

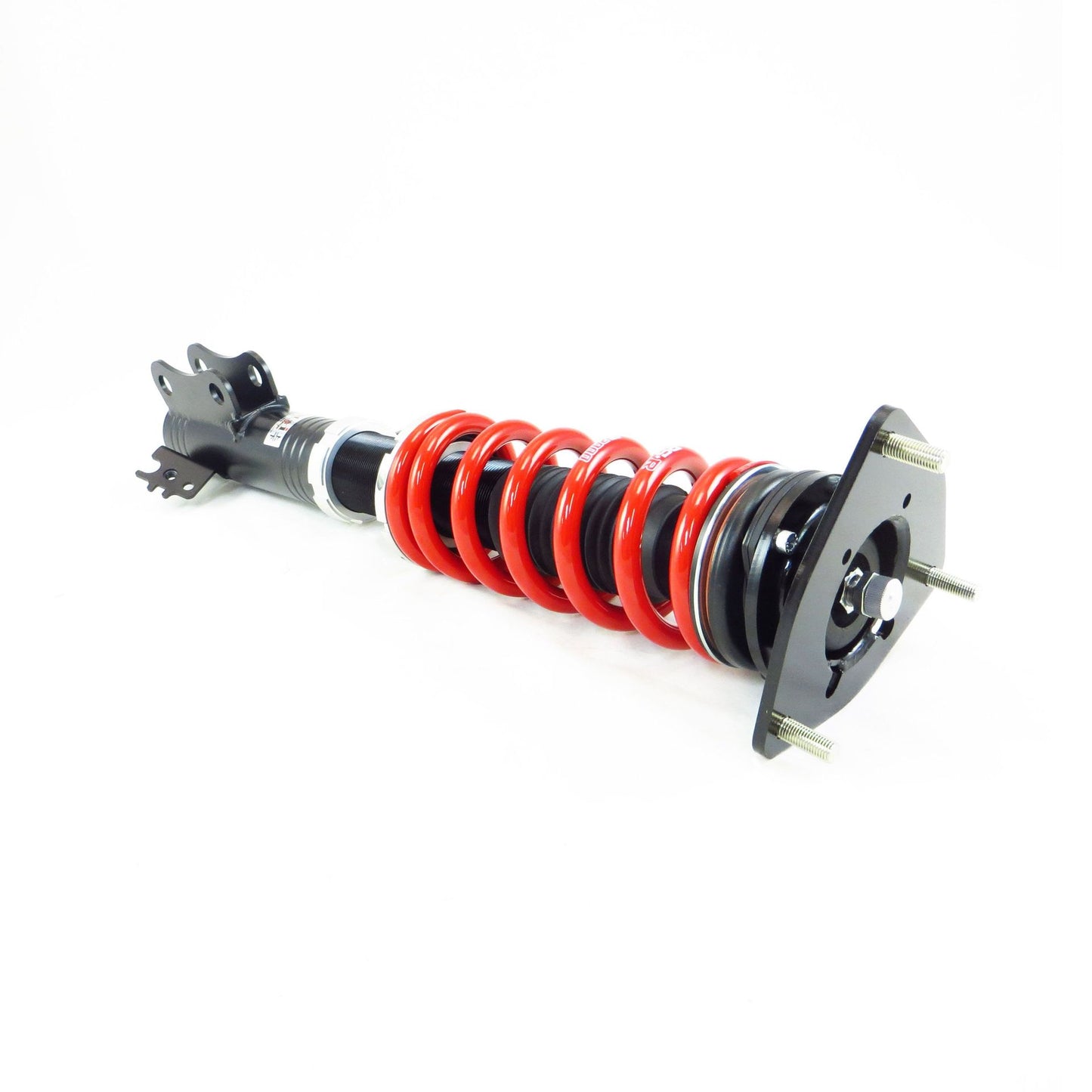

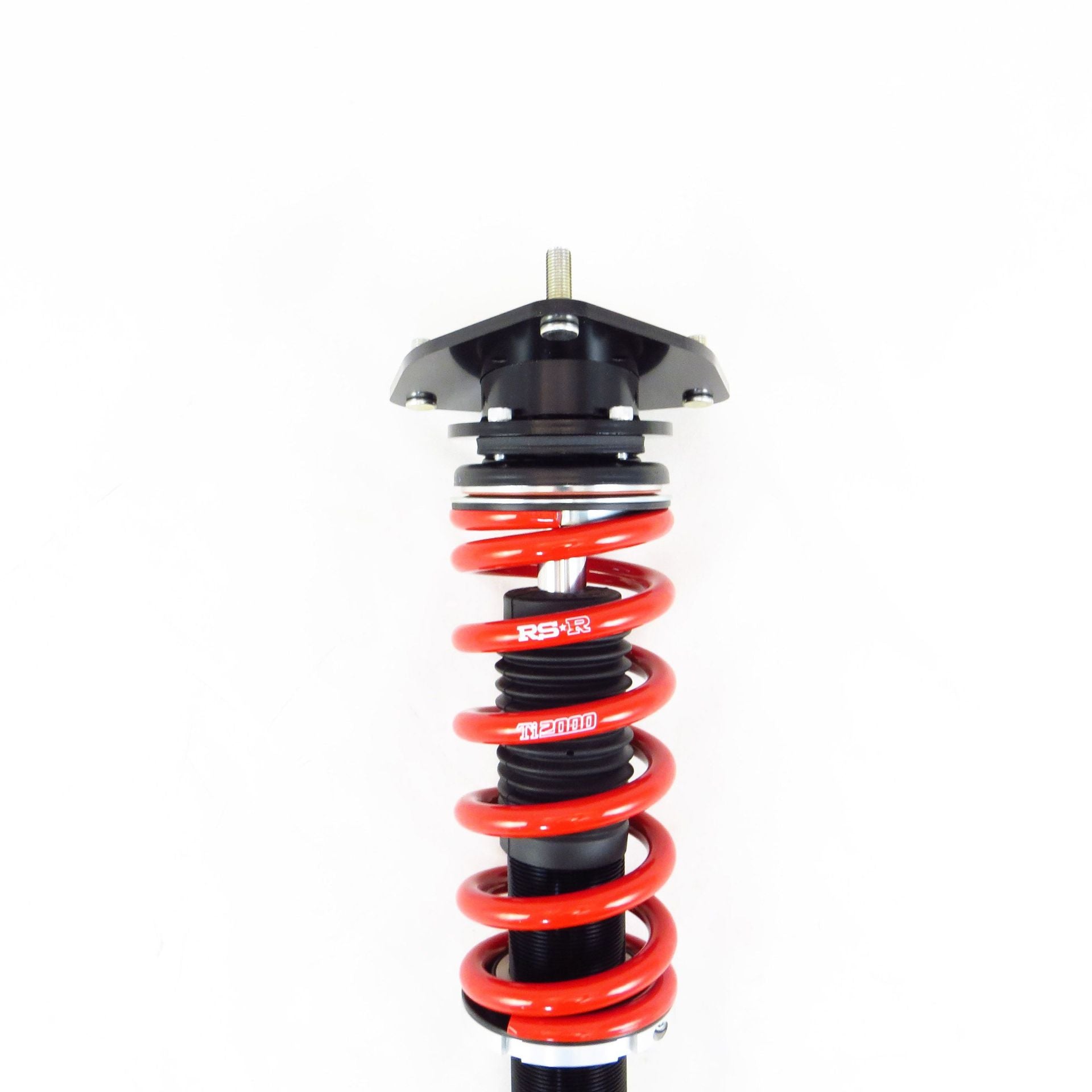

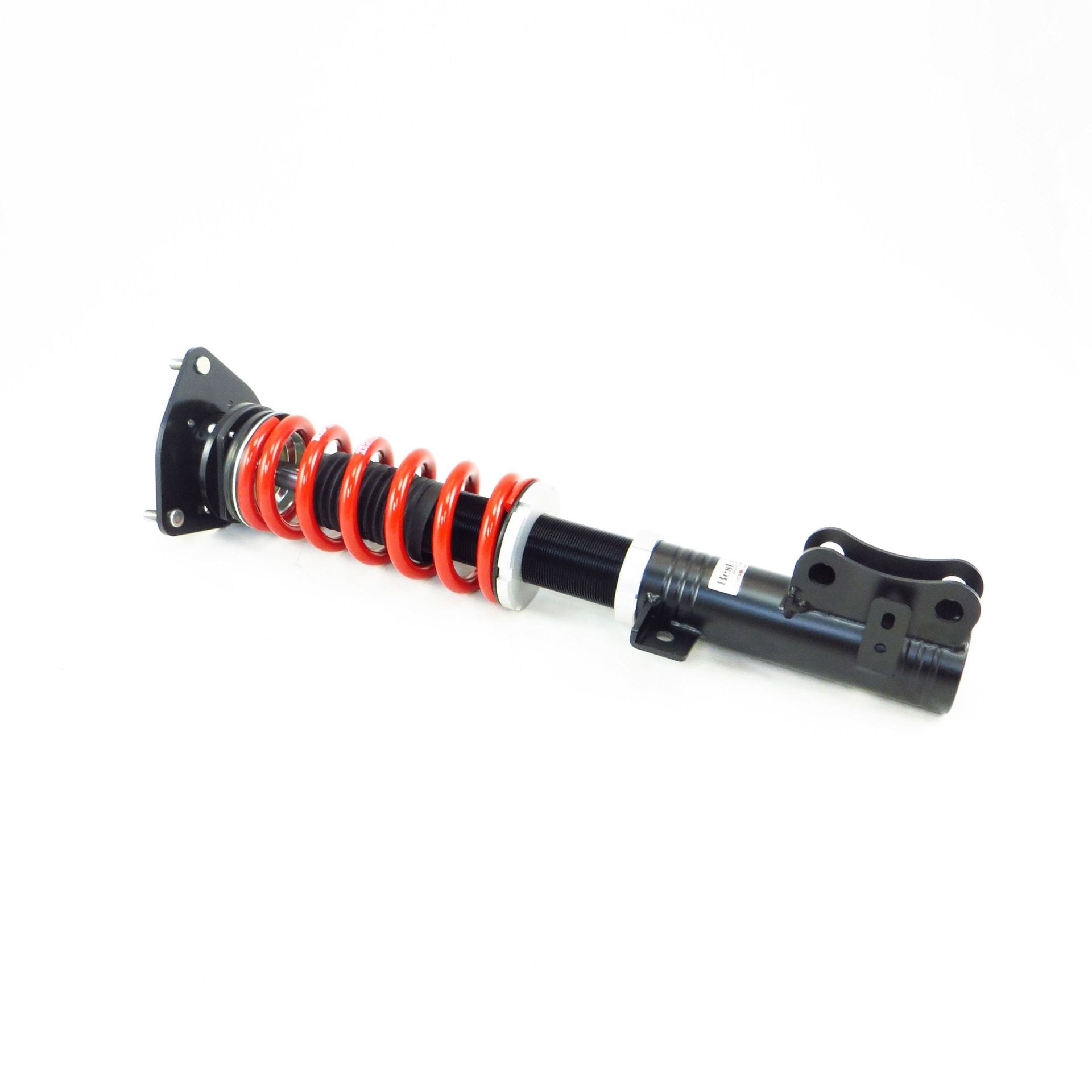

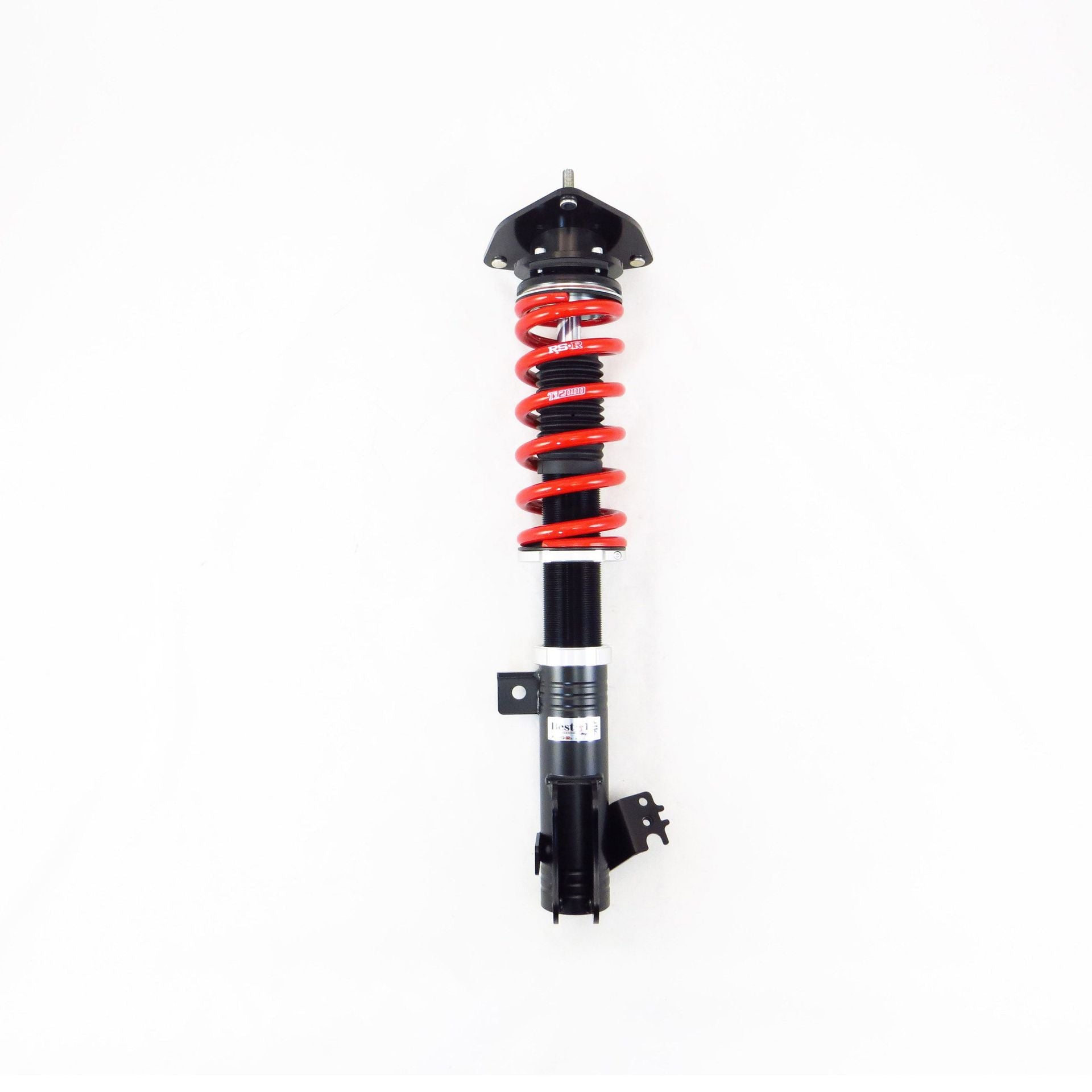

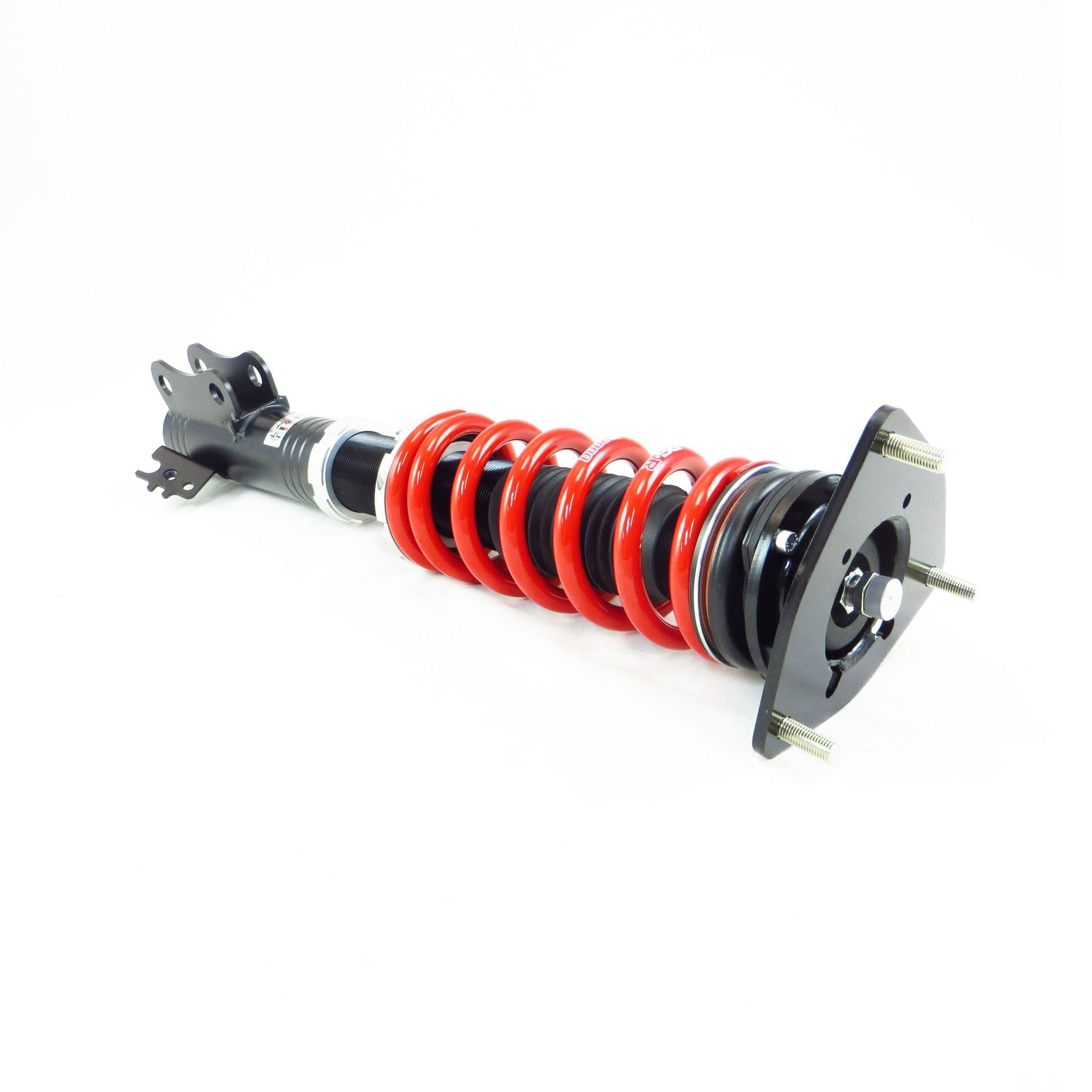

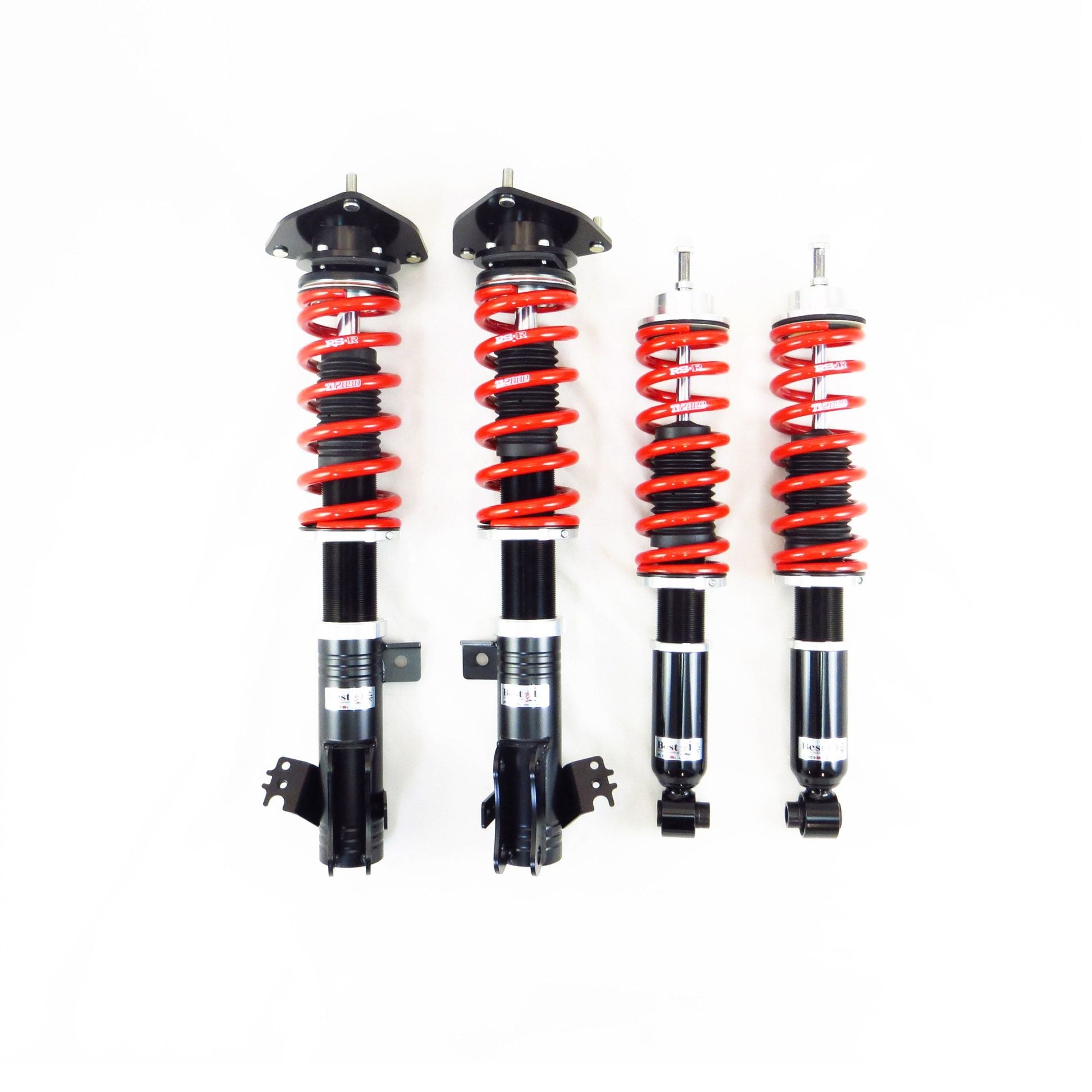

Part Number: XBIJT061M Compatibility: 2019+ Toyota RAV4 Prime Chassis code: AXAP54

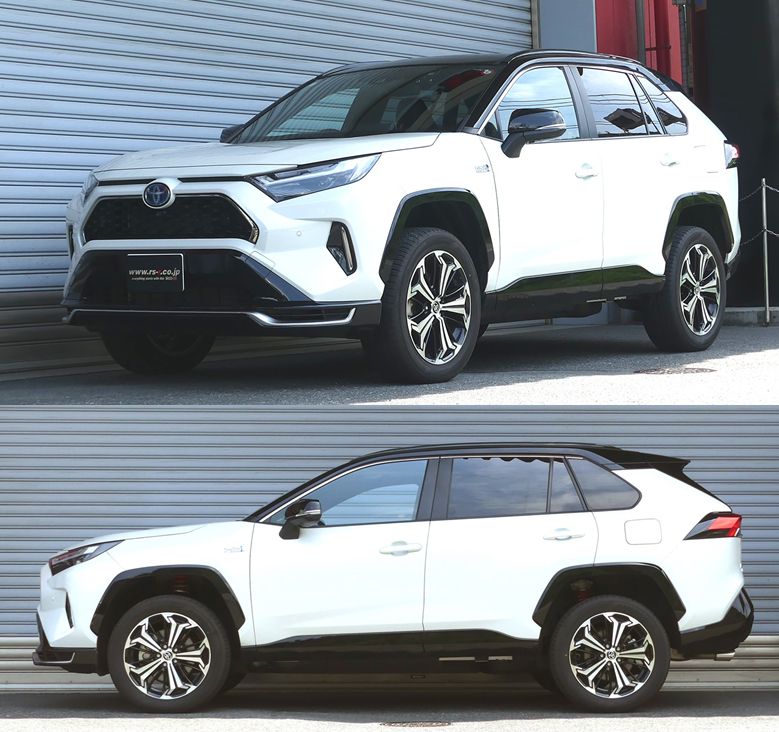

Preset Approximate Height
Front: +5mm to +10mm (+0.2in to +0.4in) Rear: -5mm to 0 mm (-0.2in to 0 in)
Maximum Adjustment Range
Front: +40mm to -55mm (+1.6in to -2.2in) Rear: +40mm to -40mm (+1.6in to -1.6in)
Recommended Adjustment Range
Front: +40mm to -30mm (+1.6in to -1.2in) Rear: +30mm to -35mm (+1.2in to -1.4in)
Spring Rate
Front: 8.00kg/mm Rear: 7.00kg/mm
Additional Information

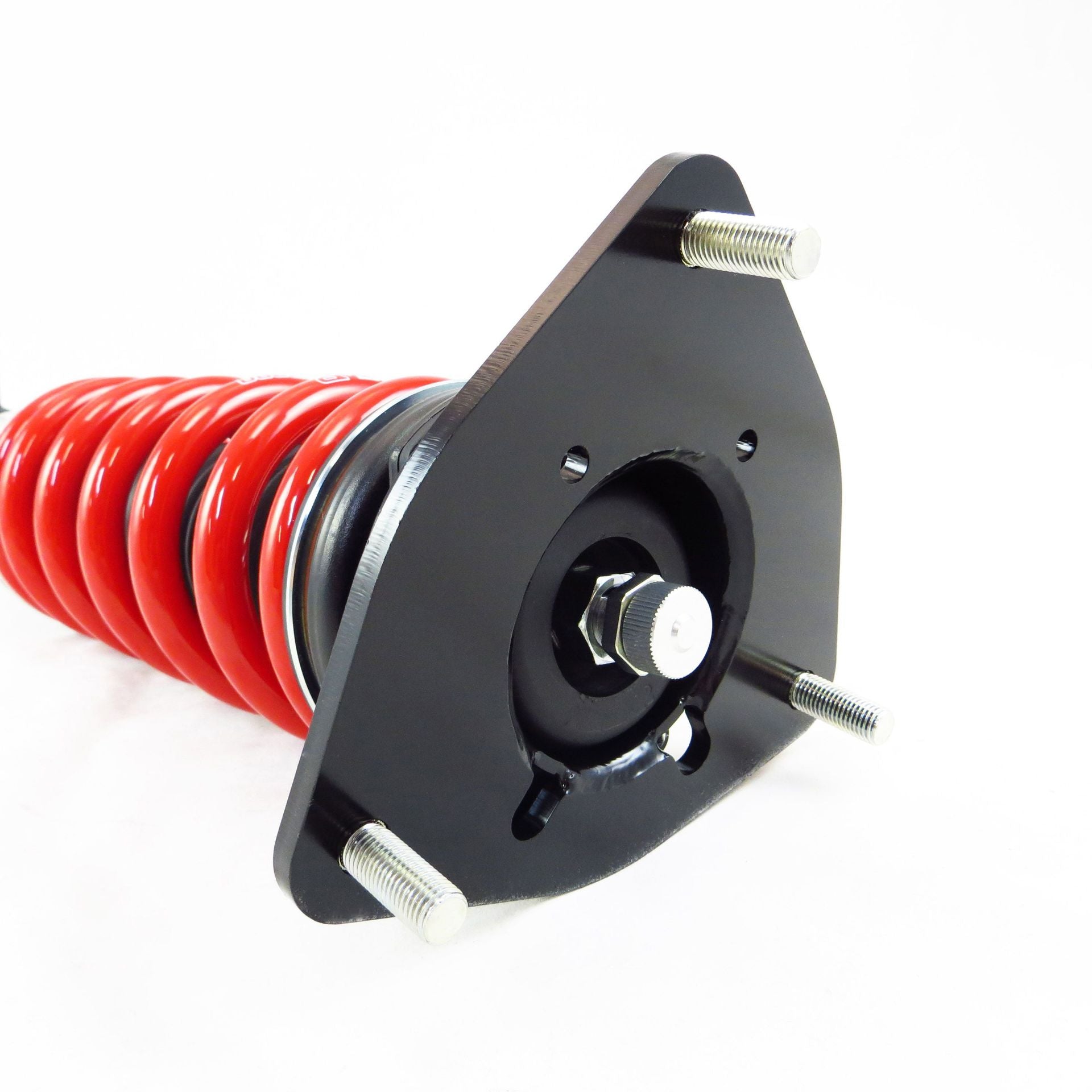

Warranty: 1 Year / 12,000 miles from the day of purchase Included but not pictured: hex and allen wrench, mount adapter for rear, rubber seat for rear spring, hex nut for rear shock, bolt and washer for rear, water-proof rubber cover for rear shock, stabilizer link for front and spring tube for front and rear ** Factory front upper mount needs to be re-used**
