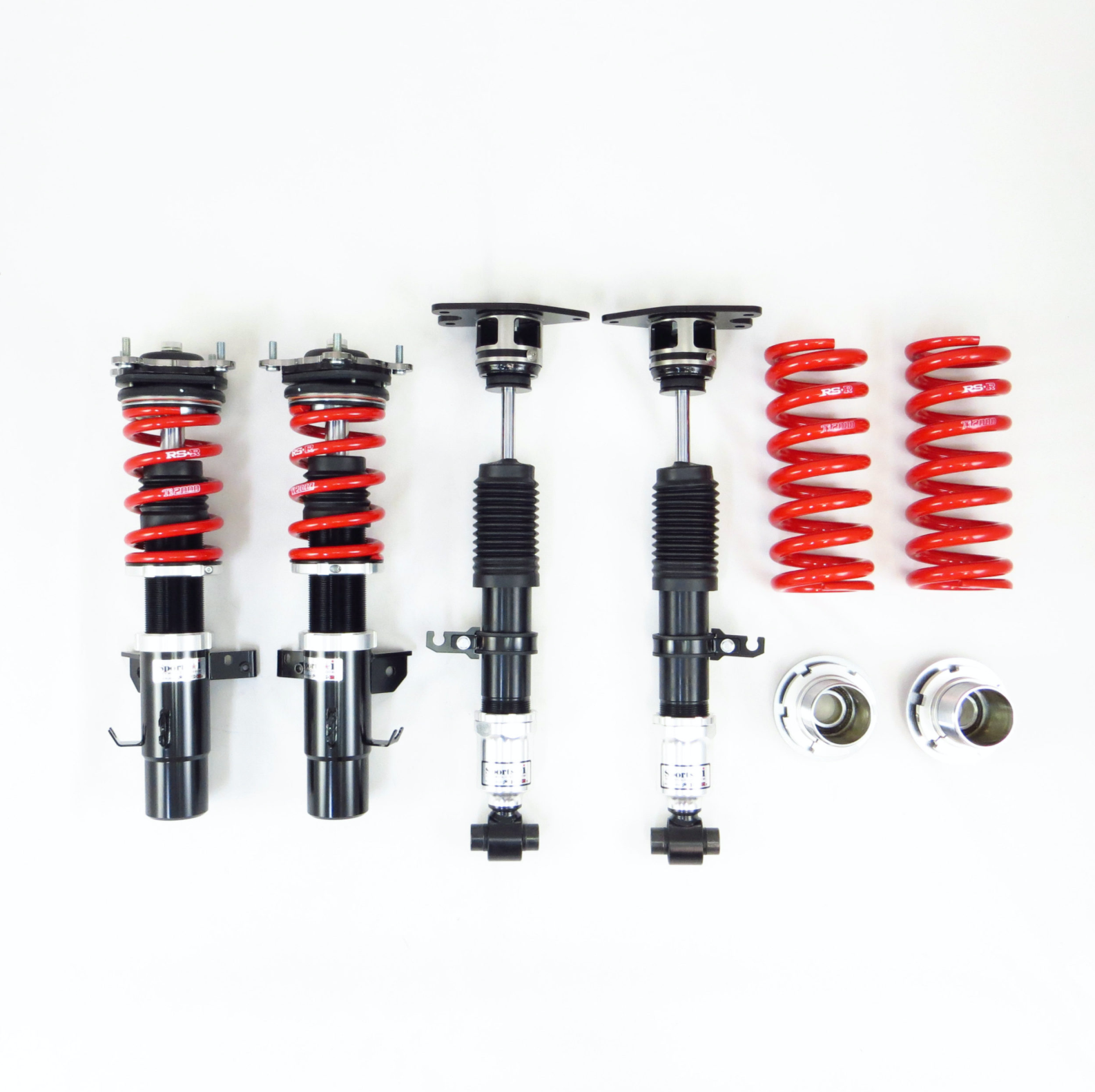

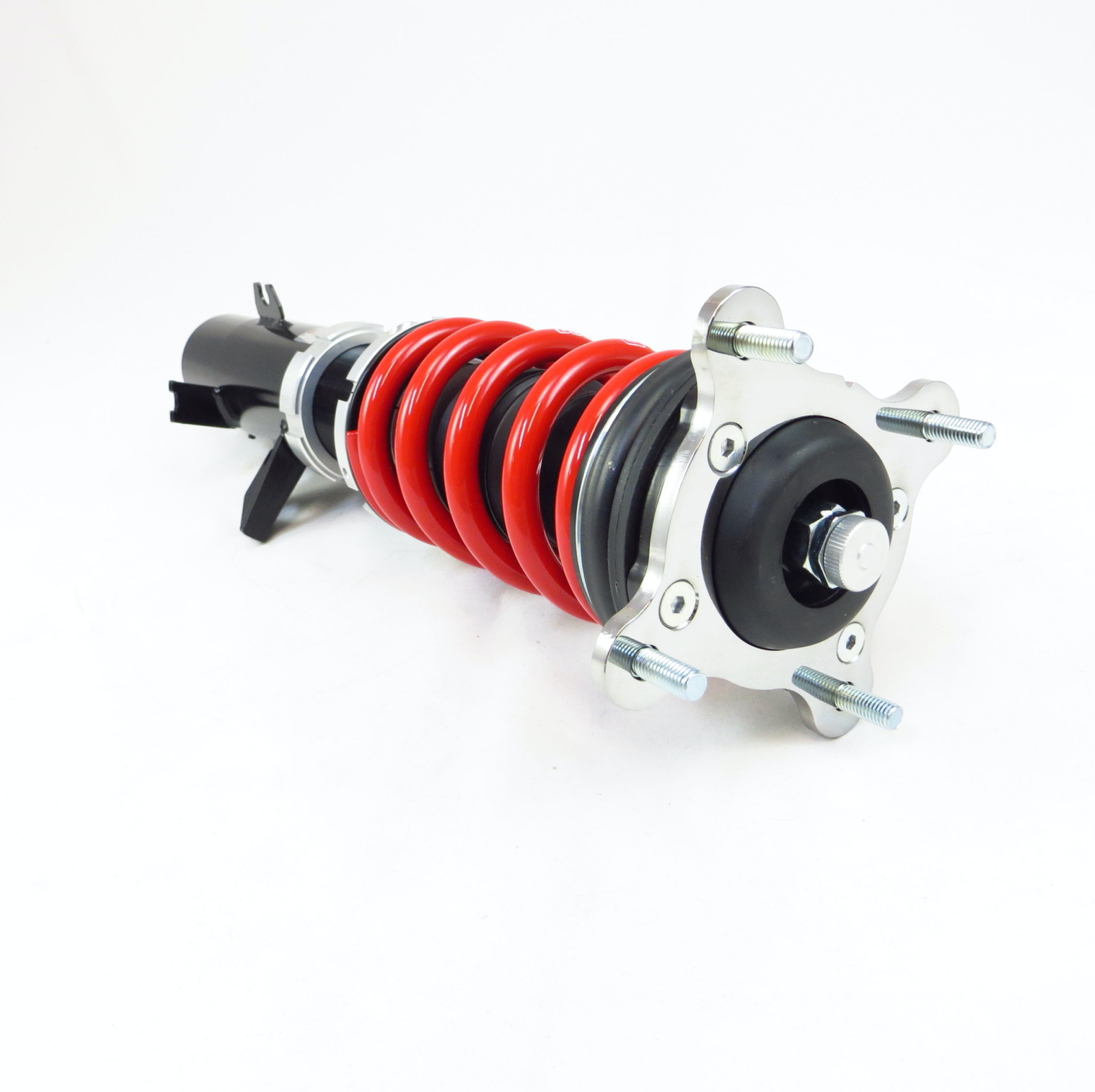

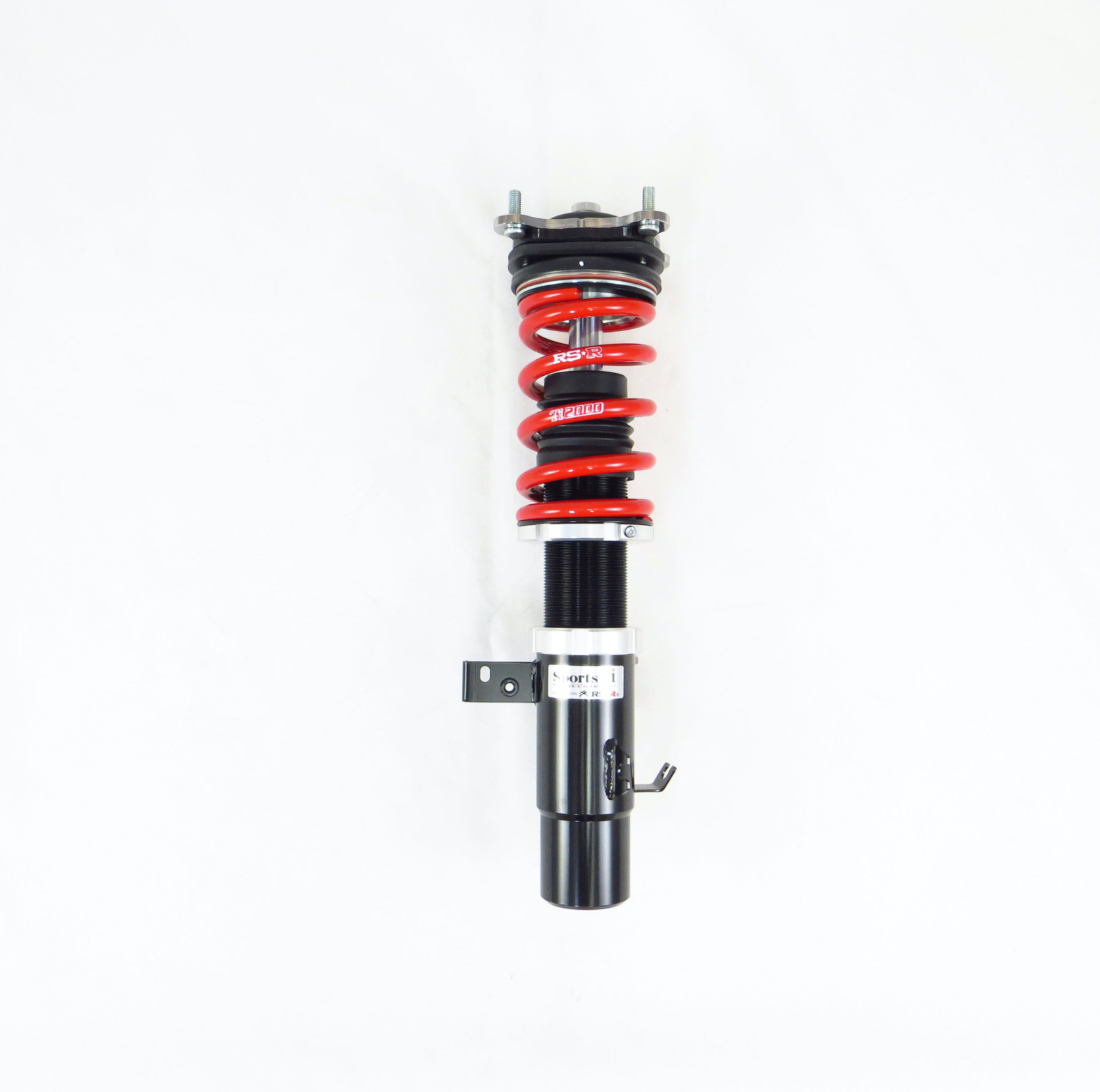

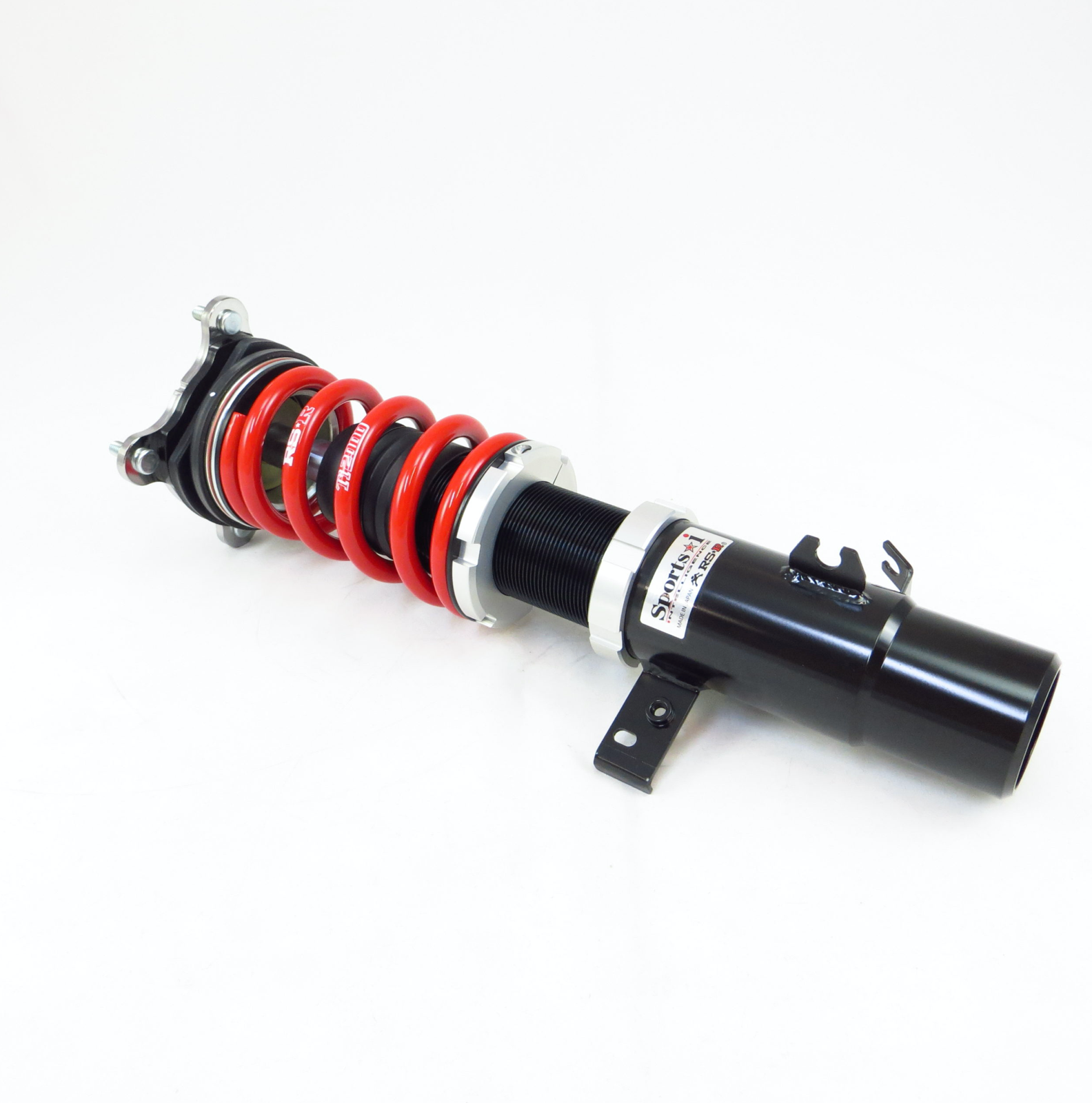

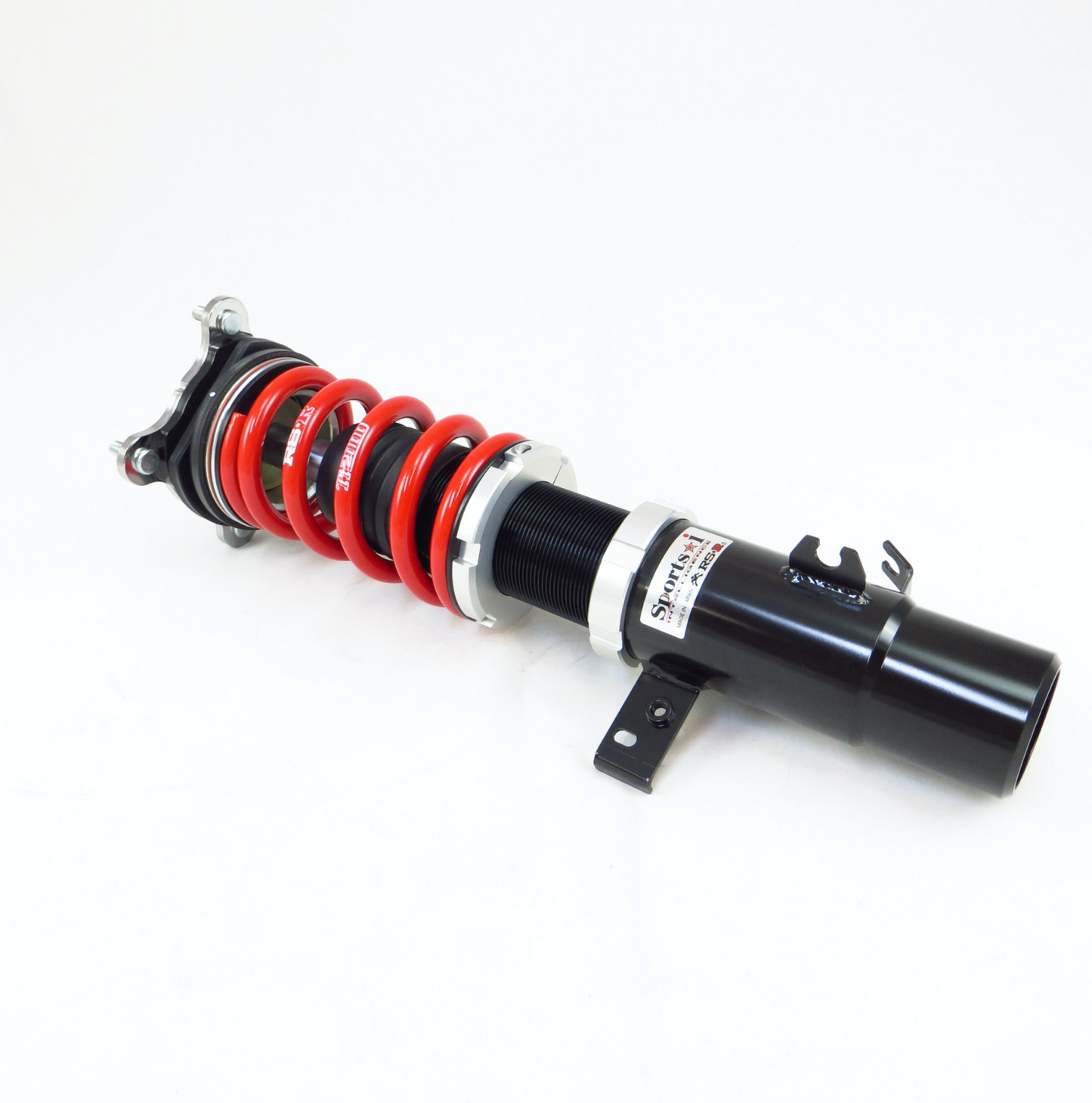

RS-R Sports-i Coilovers 2020 Toyota Supra

Our Price: $1,999
Vendor: RS-R SKU: XBIT215M

Description

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance for your 2020 Toyota Supra.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Quality and Detail

The RS-R coilovers are all Monotube hand assembled systems specifically designed to improve ride quality, performance, and comfort.  Utilizing components such as; laser cut upper mounts, hand welded lower brackets, vehicle specific valving, are all assembled by hand to ensure quality and detail.

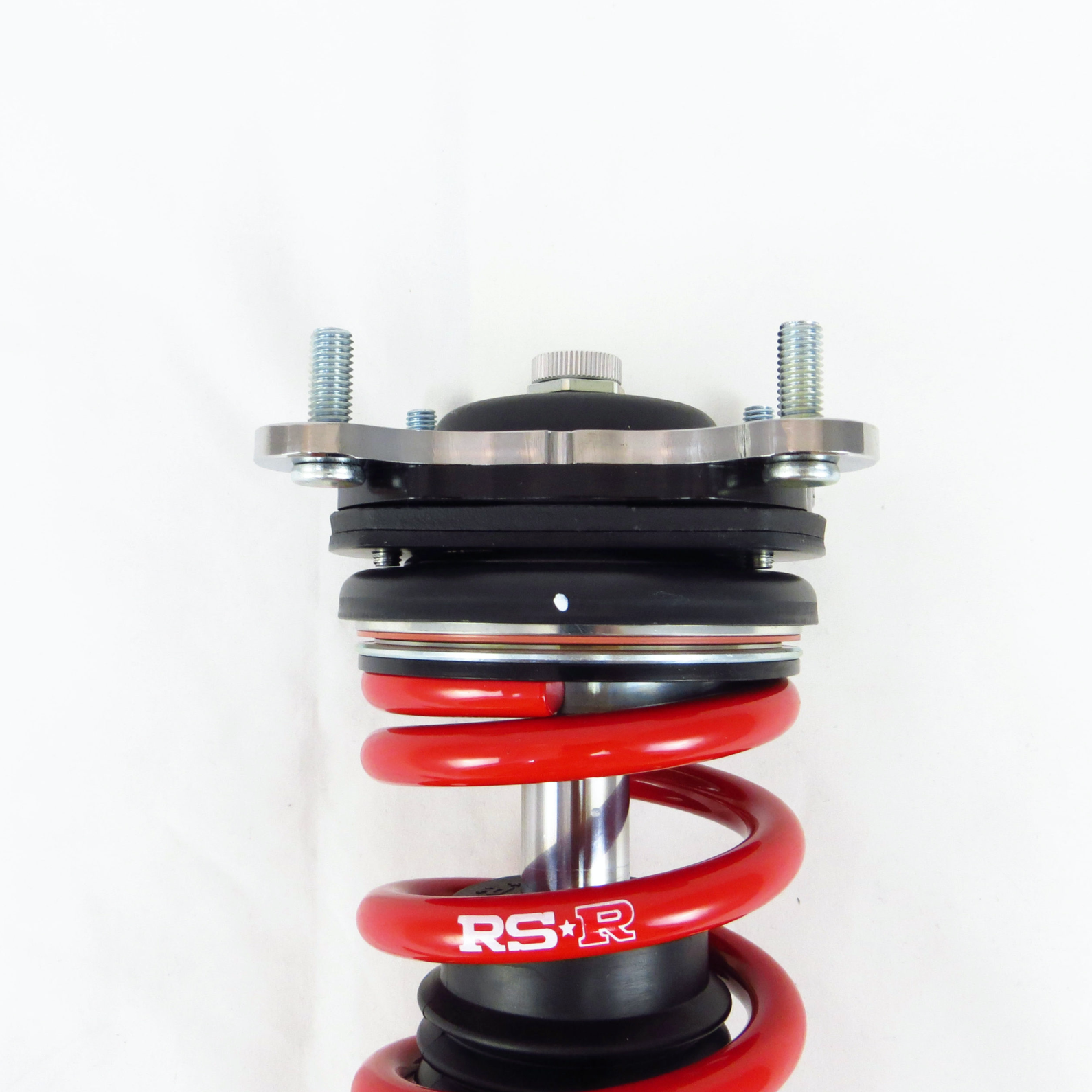

Urethane Bushing Technology

Utilizing Urethane bushing instead of bearing to reduce excessive vibrations from every day driving, as well as minimizing noises from suspension movements.

The Silent Roller Bearings

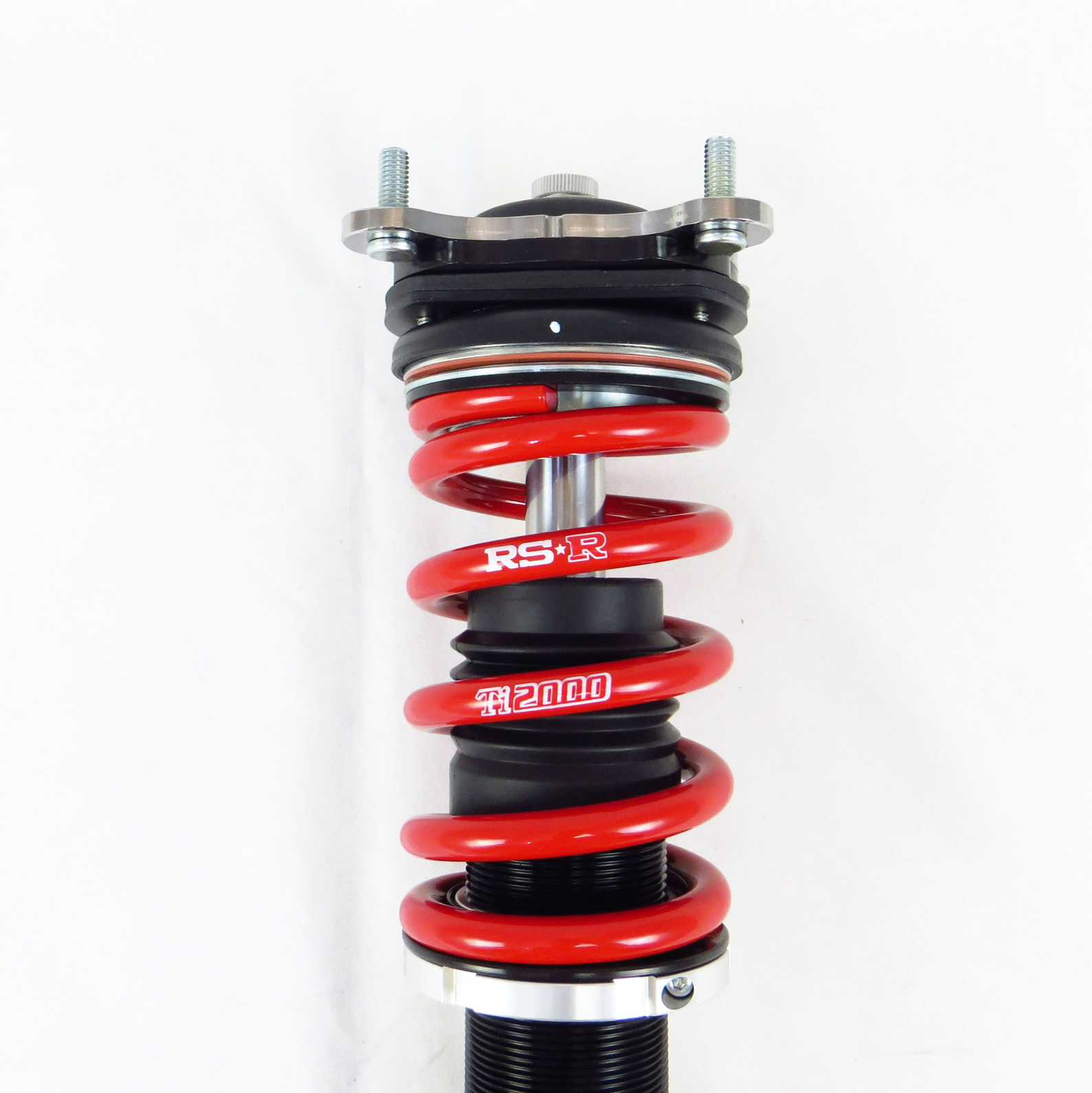

On MacPherson type suspension, as the suspension rotates along with the steering wheel, the coil springs may be prone to twisting.  RS-R suspension utilizes roller bearings to eliminate spring twist noise.

Comfort and Adjustment

Rubber padding is utilized to help eliminate potential noise from suspension movements. Damper adjustment dials are up to 36 way adjustable to tune the shocks compression and rebound to each individuals needs for almost any driving condition.

Damping Adjustment

Damper adjustment dials are up to 36 way adjustable to tune the shocks compression and rebound to each individuals needs for almost any driving condition.

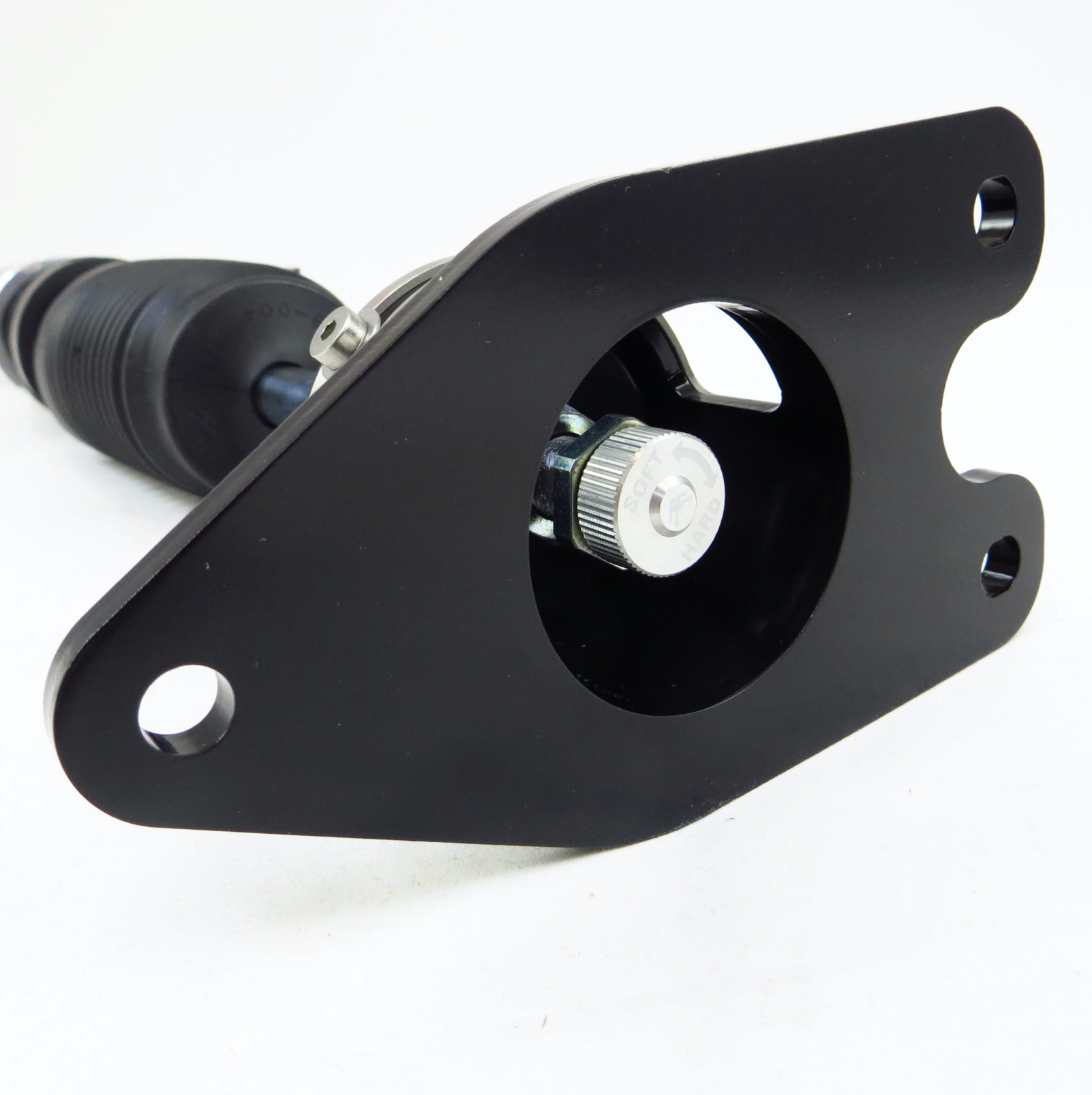

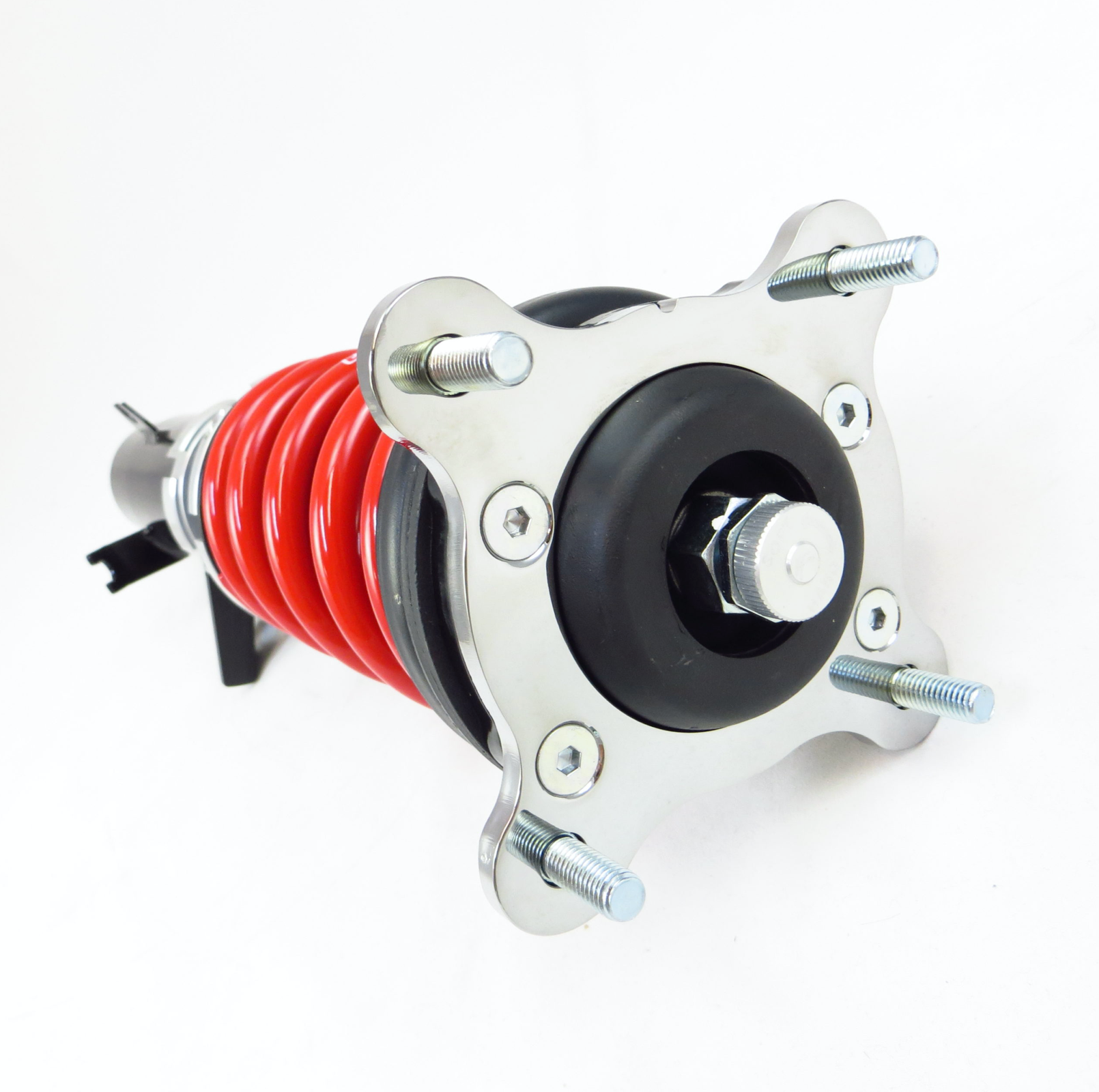

Refined Camber Tuning

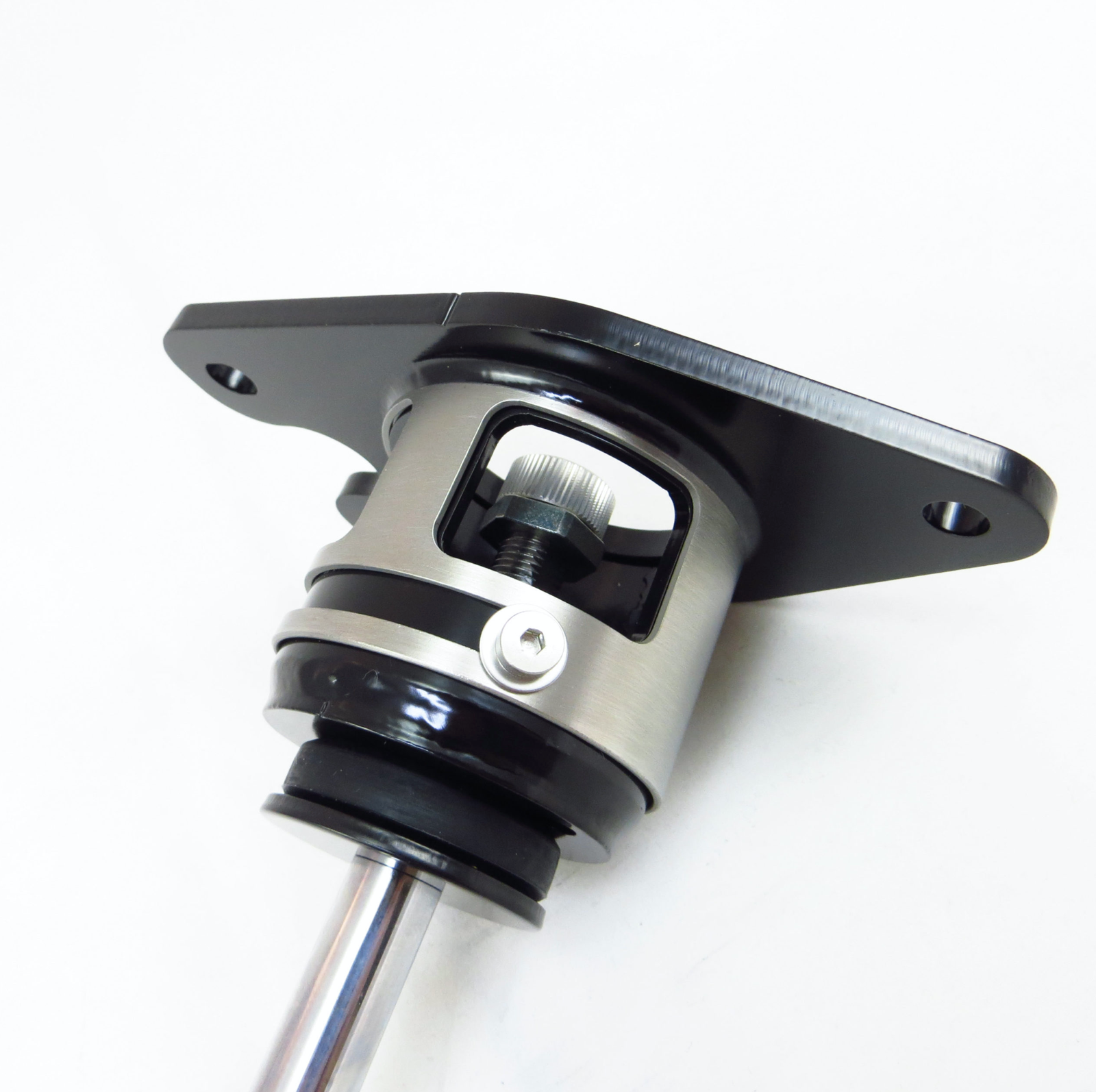

If desired, the upper mounts on select vehicles can add 1.5 degree of camber from the preset setting by unbolting the upper mount and rotating the plate 180 degrees.  (for more precise control of camber, adjustable camber plates are available for select models)

Compatibility: 2020 Toyota Supra
Chassis code: DB42

Preset Approximate Height From RS-R:
Front -30mm to -35mm (-1.2in to -1.4in)
Rear -40mm to -45mm (-1.6in to -1.8in)

Maximum Adjustment Ranges
Front -5mm to -80mm (-0.2in to -3.2in)
Rear -15mm to -70mm (-0.6in to -2.8in)

Recommended Adjustments for Optimal Ride-ability
Front -10mm to -55mm (-0.4in to -2.2in)
Rear -15mm to -70mm (-0.6in to -2.8in)

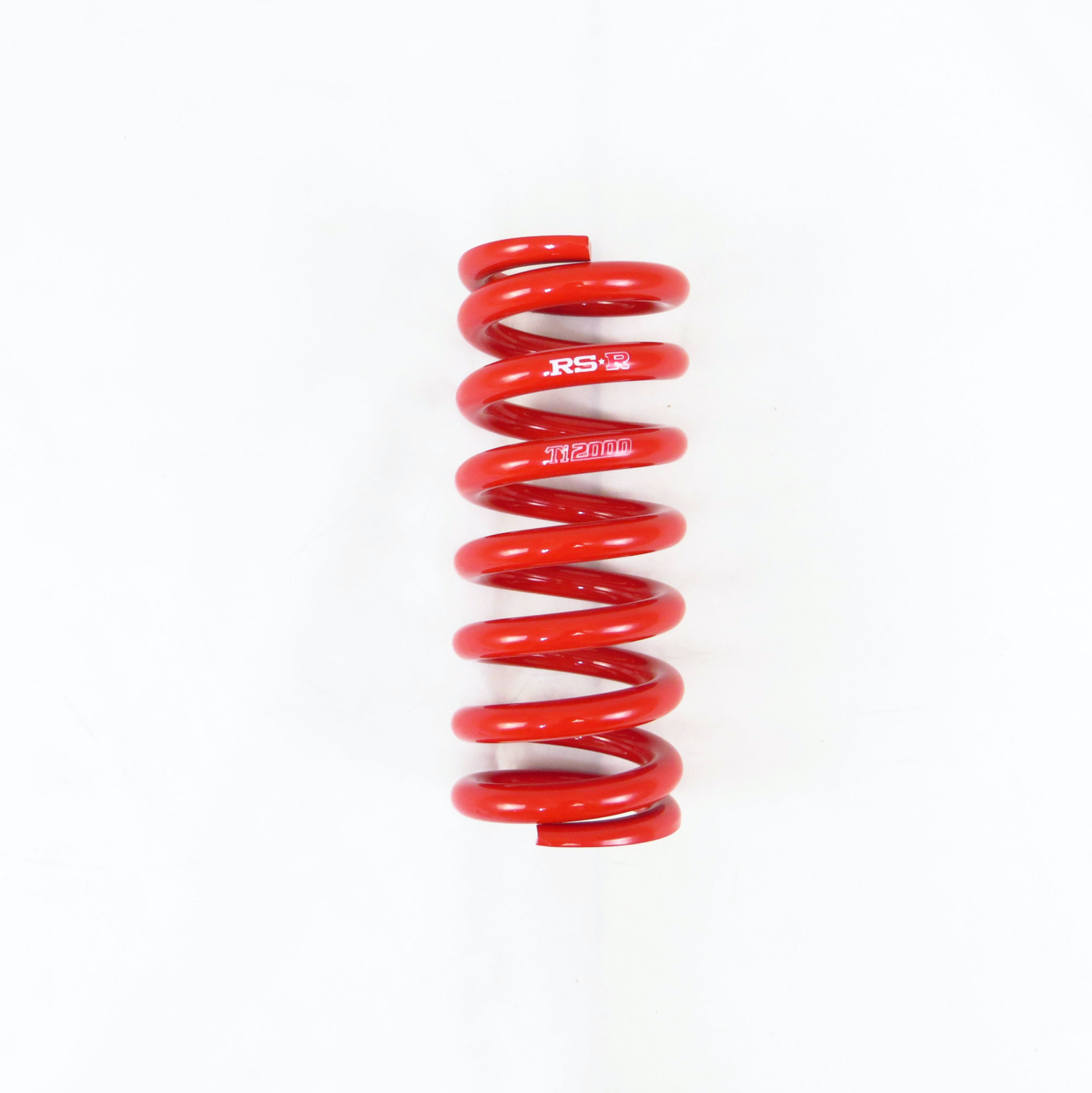

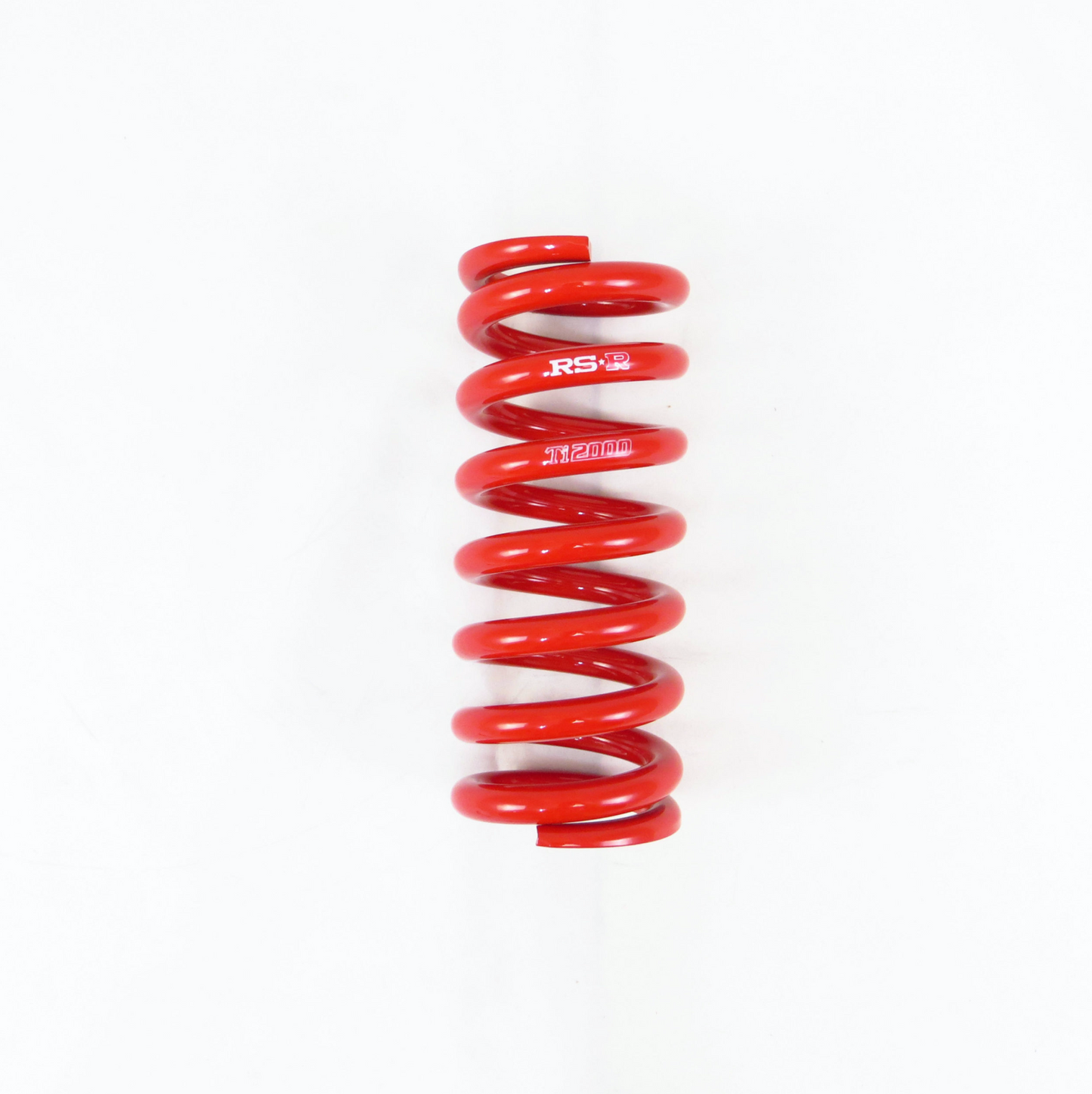

Spring Rates:
Front 8.00kg/mm
Rear 14.0kg/mm

Damper Warning Canceler doesn’t come with the kit. If the canceler is not installed, error message is displayed and traction control off system is not functioned.
