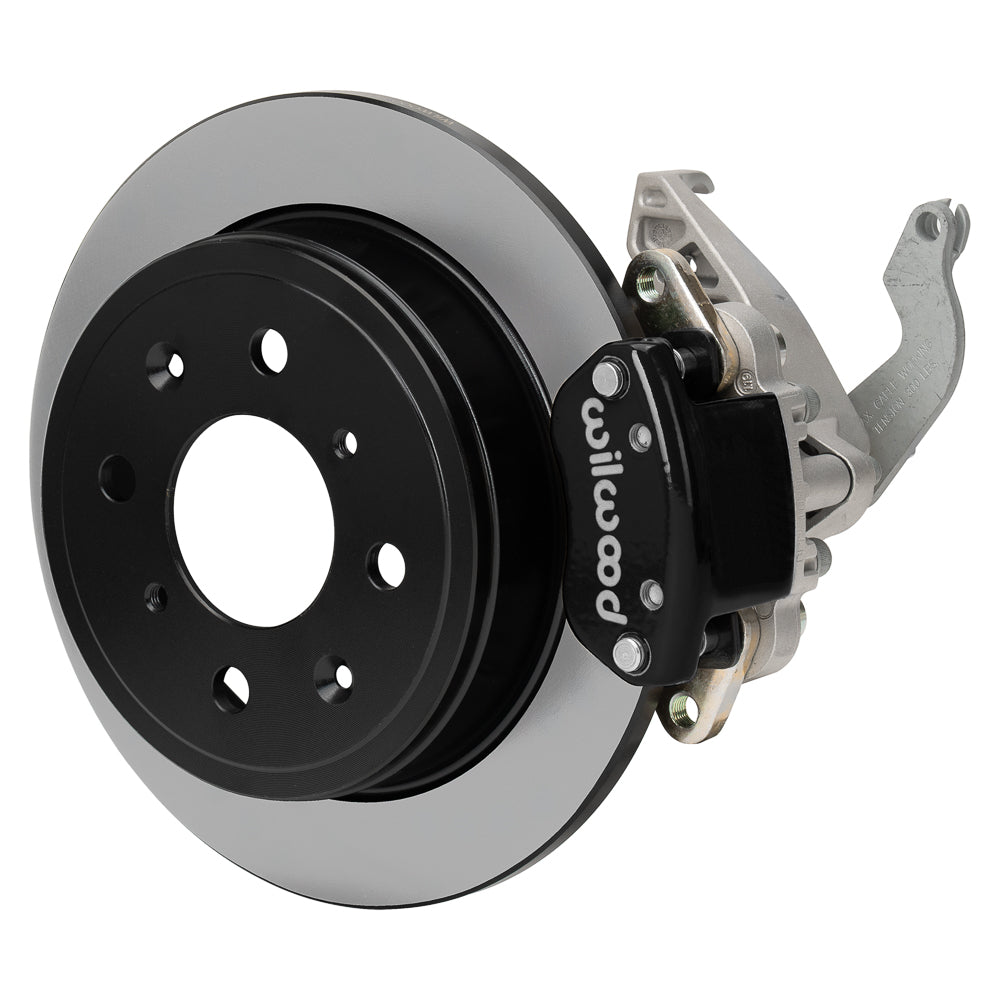

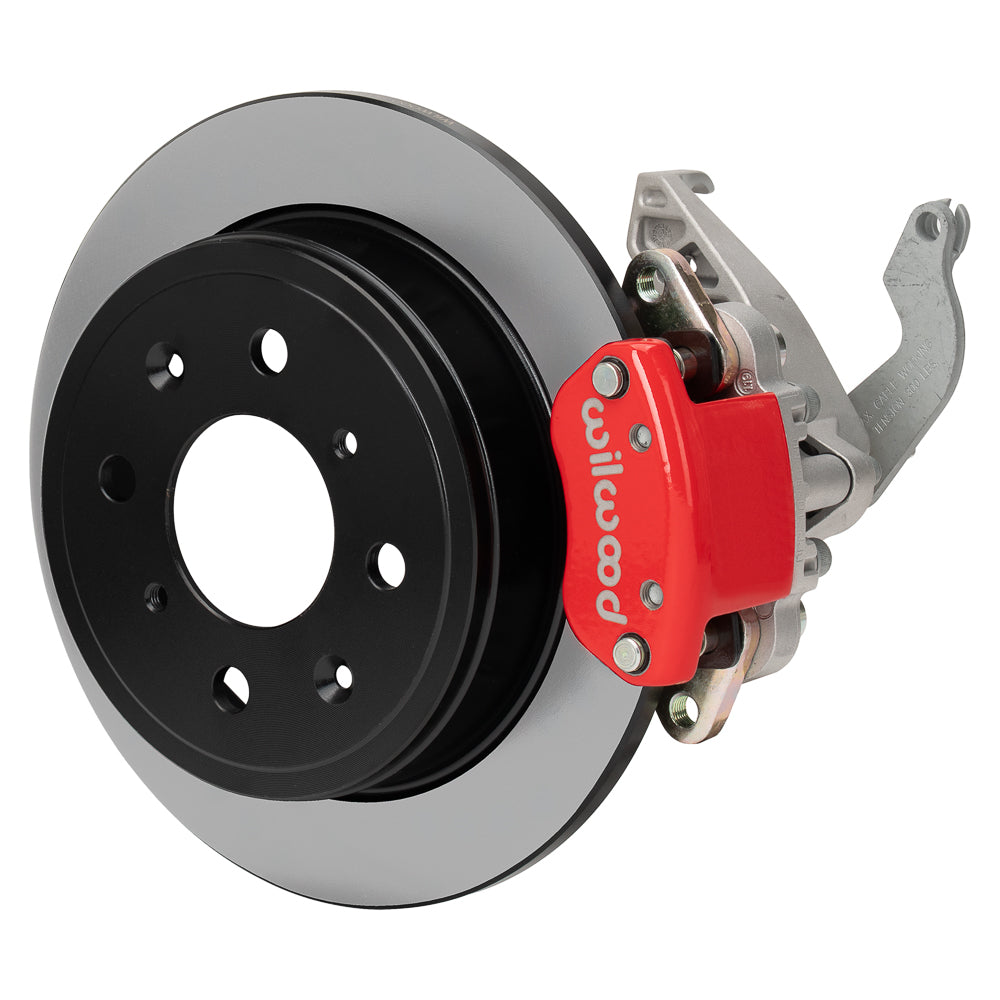

Wilwood HM7 Parking Brake Caliper Rear Brake Kit 1988-2004 Honda Civic (Rear Drum) Undrilled

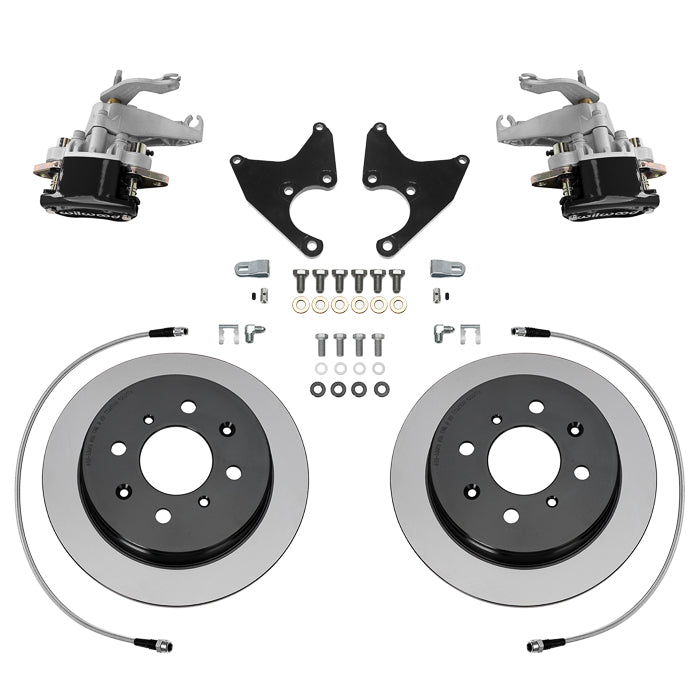

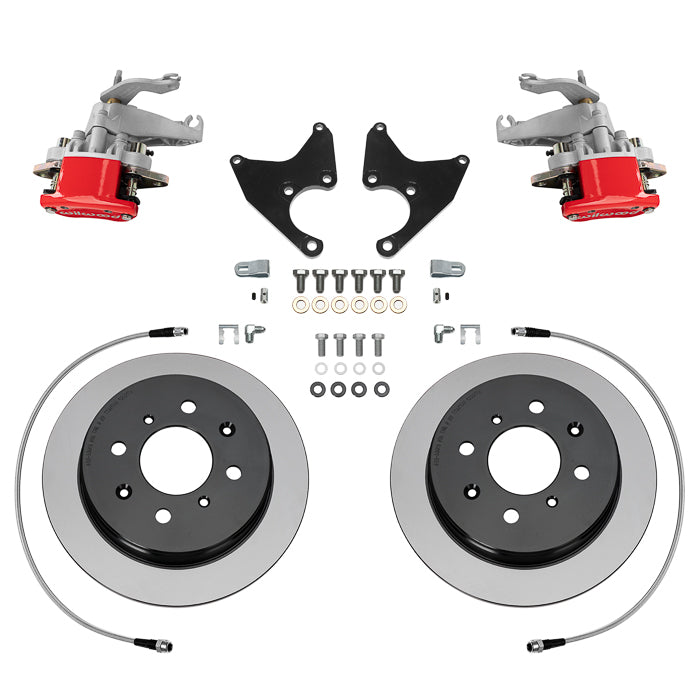

HM7 hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. HM7 kits are built primarily for select front wheel drive cars that are not well suited for internal shoe style parking brakes. The calipers are coupled with 9.39 inch one-piece rotor assemblies with integral hats, cable adapter assemblies, stainless braided flexlines and high friction BP-10 compound pads. HM7 kits provide the correct balanced brake performance and matching style to complement front big brake upgrade kits.

1. For applications with original disc brakes and 2.39 hub offset.

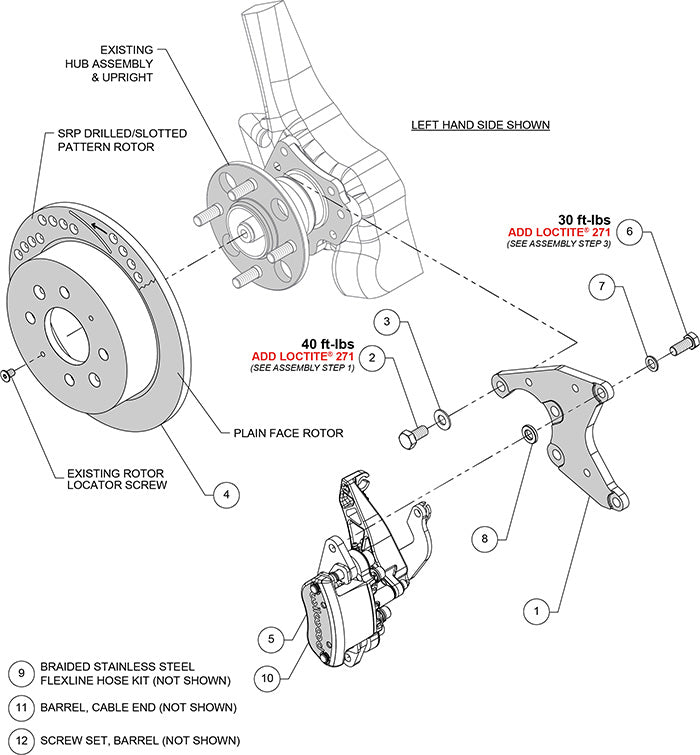

AXLE OFFSET: 2.71 Check the diagram above and verify this measurement. This kit may be available in several different offsets.

*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
