Wilwood Street Dynapro 4R Brake Kits Front 2016-2023 Mazda Miata ND (GT Slotted 11.00" Rotor)

The 2016-23 Mazda MX-5 Miata ND is a fun, lightweight sports car, but the factory brakes leave room for improvement. Wilwood’s motorsports- proven Dynapro forged aluminum, four piston radial mount calipers deliver improved clamping and a more consistent pedal feel. The 11.00” x 0.81” (280mm x 21mm) Spec37 alloy rotors resist thermal distortion and feature 72 straight cooling vanes. Front brake kits are available in street or race spec.

Kit Features:

Complete bolt-on installation using factory hubs and spindles; no modifications are required

Compatible with stock master cylinder, rear brakes, and computer system

Calipers:  Dynapro NDP4R

Rigid forged billet aluminum Narrow Dynapro four piston calipers with Type III Mil-Spec hard-anodized surfaces resist bore wear and abrasion

Street kits available in gloss red or black powder coat, or 22 additional colors (extra charges apply)

Rotors: Spec37 GT-72 Straight Vane

Long-wearing proprietary iron alloy 11.00” x 0.81” (280mm x 21mm) GT slotted rotors with 72 straight cooling vanes

Forged aluminum mounting hat reduces weight

Race-spec kits provide full isolation of thermal stresses by dynamically mounting the floating rotor to the hat

Brake Pads:  Street or Race Spec

Street performance BP-10 SmartPads provide good response at low temperatures and resist fade as heat increases

Race-spec BP-40 SmartPads provide aggressive engagement and maintain friction even at temperatures over 1000°F

Installation Parts:

Includes high-performance braided stainless Flexlines

Forged aluminum caliper brackets and all premium-grade installation hardware also included

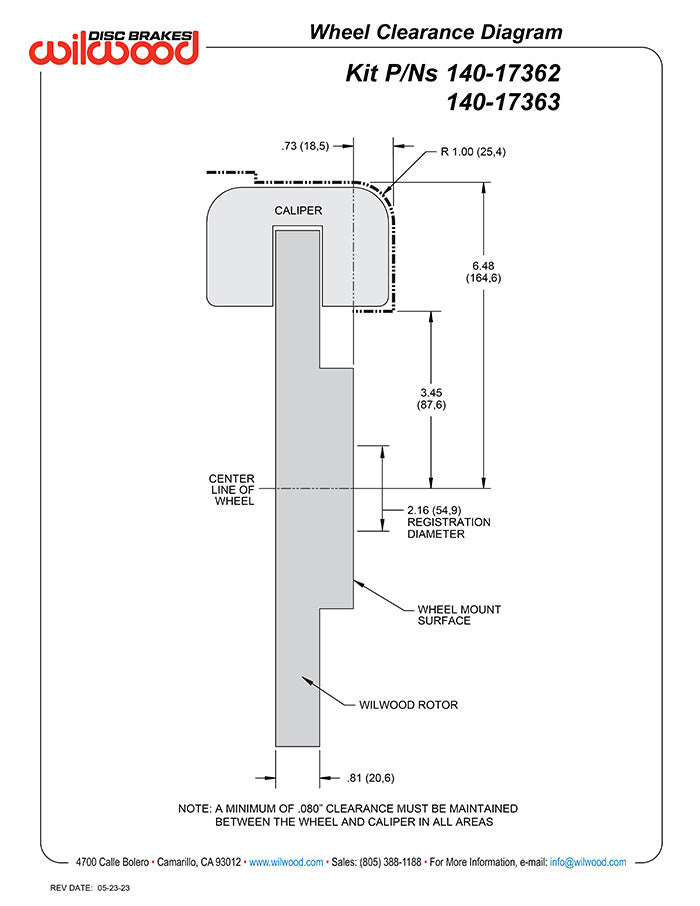

This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
