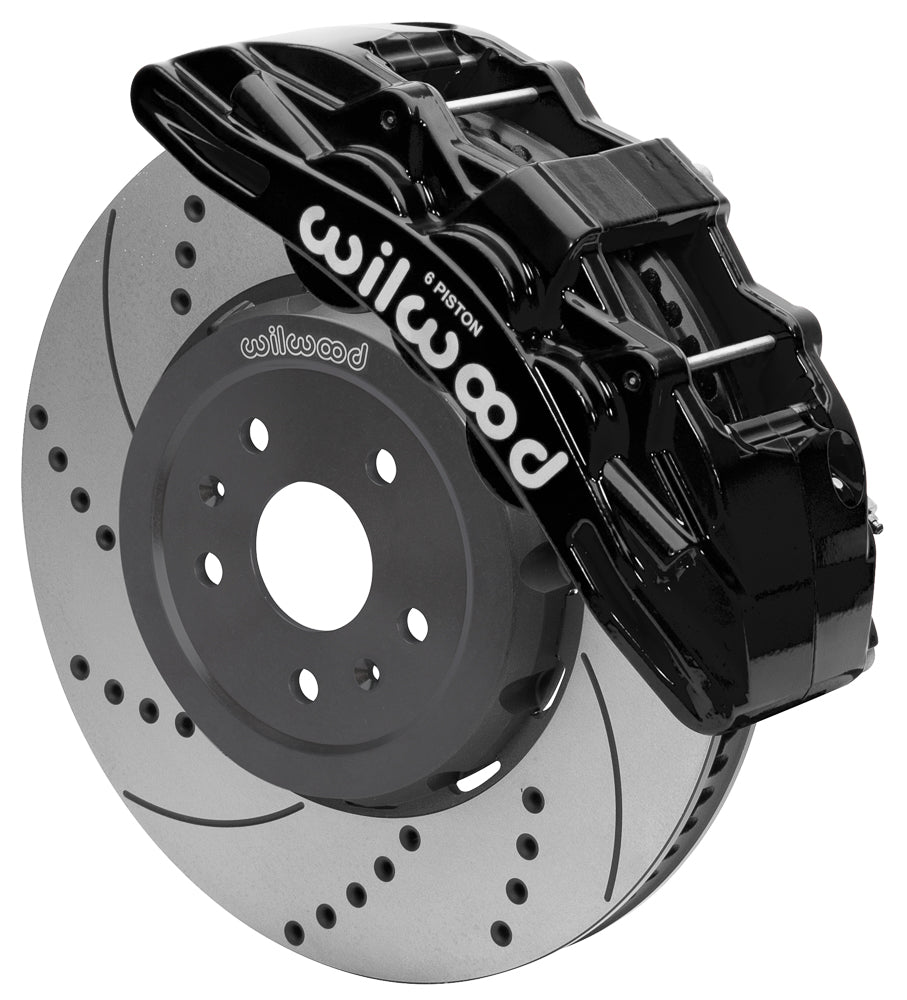

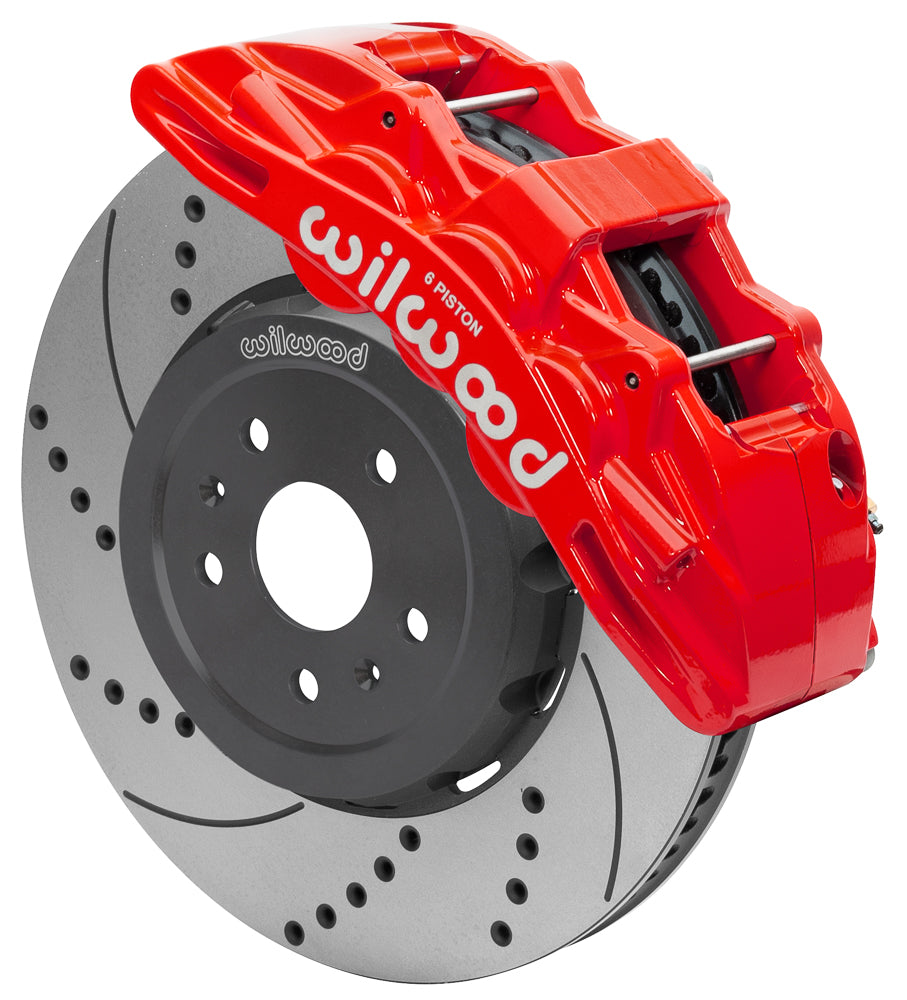

Wilwood SX6R Big Brake Kits Front 2020-2023 Chevy Corvette C8 (SRP Drilled & Slotted 15.00" Rotor)

Wilwood’s Speed Xtreme SX6R six piston front and Aerolite AERO4 four piston rear calipers are combined with 15.00” dynamic-mount, Lug-Drive floating rotors to create the ultimate C8 Corvette big brake package. These rotors are more than 2” larger in diameter than the base model’s brakes, 1.7” larger than the factory Z51, and 0.5” larger than the Z06. The kits deliver better pedal feel, increased brake torque, and greater thermal capacity without distortion.

Kit Features:

Complete bolt-on installation that works with the factory master cylinder and on-board computers without modification

Increased thermal capacity for heavy use without fading or distortion

Front Calipers: SX6R

Strong and rigid stress flow forged aluminum SX6R caliperbody with closed central bridge resists deflection for better pedal feel and improved clamping

Six stainless steel pistons in Type-III hard anodized bores with high-temperature seals for durability

Rotors: Spec 37 GT or SRP Drilled

Dynamic-mount Lug-Drive floating rotor system isolates thermally induced stresses between the hat and rotor

Race-proven Lug-Drive system eliminates need for safety wire, thread lockers, or torque wrenches

Big 15.00” Spec37 72 curved vane rotors have more thermal capacity and better cooling for increased performance and longer life; choose GT slotted or SRP drilled & slotted

Brake Pads: BP-10

BP-10 street performance pads provide smooth, and consistent response with long wear over a broad range of temperatures (other compounds available)

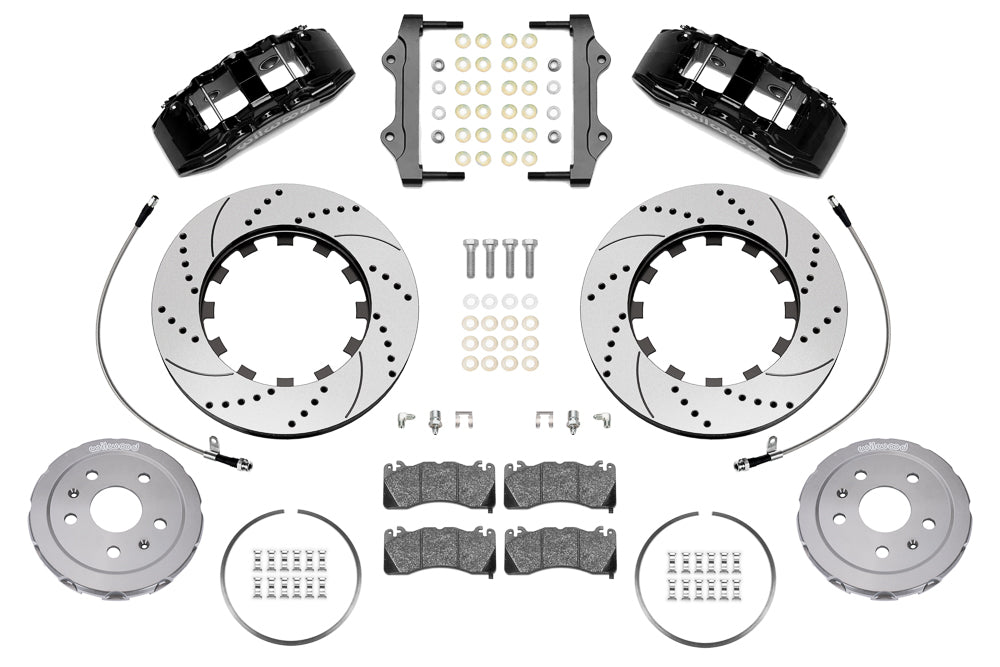

Installation Parts:

Caliper brackets, stainless steel braided Flexlines, and premium-grade installation hardware included

This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
